Product Description

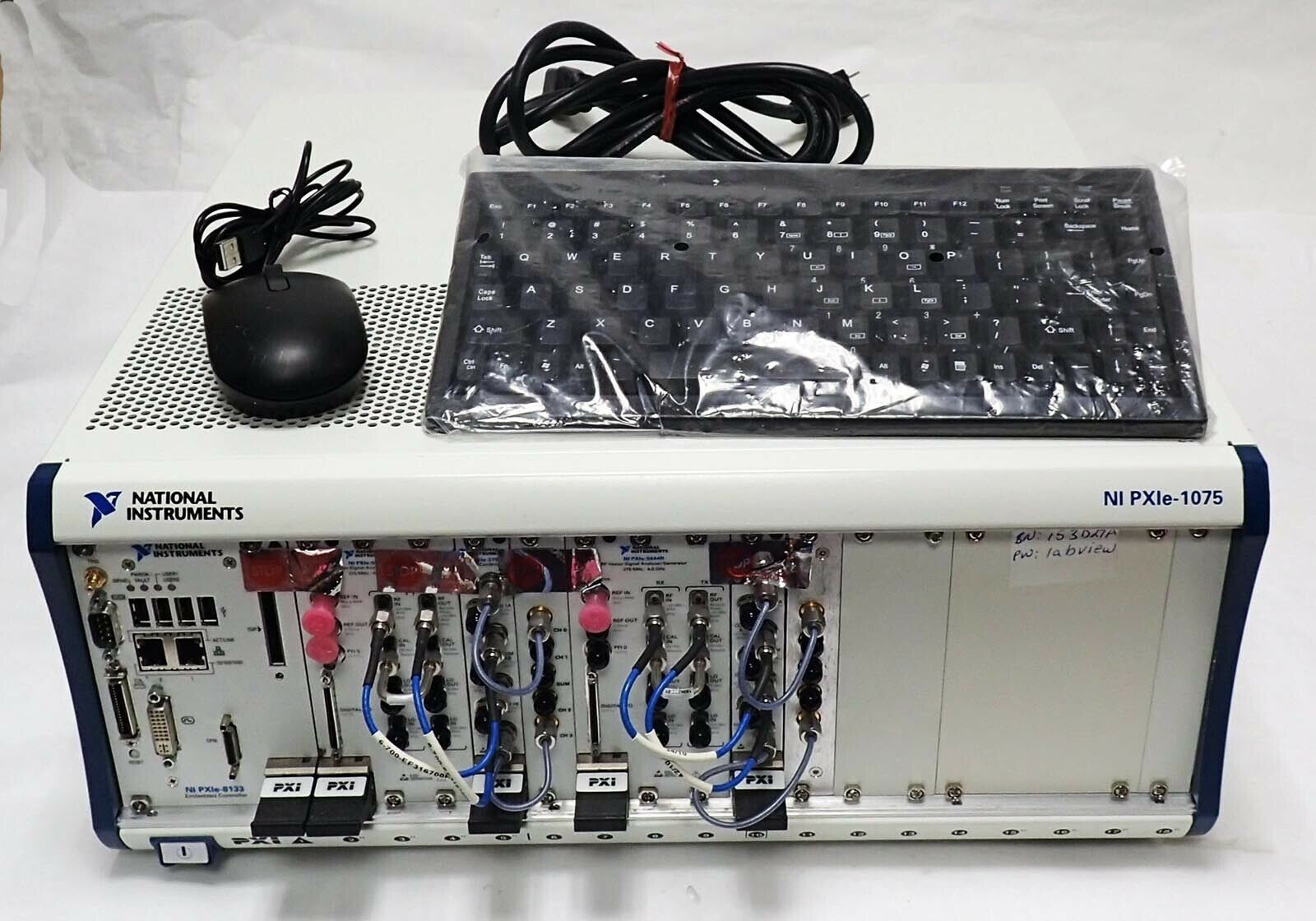

NATIONAL INSTRUMENTS PXIe-1075 18-SLOT 3U PXl EXPRESS CHASSIS
8 hybrid slots, 8 PXI Express slots, 1 PXI Express system timing slot
791 W total power
Compatibility with PXl, PXl Express, CompactPCI, and CompactPCI Express modules
High performance - up to 1 GB/s per-slot dedicated bandwidth and 4 GB/s system bandwidth
Windows 7
NI PXIe-8133 - 3.06 GHz Quad-Core PXI Express Controller
The PXIe-8133 is an Intel Core i7 embedded controller for PXI and CompactPCI systems. It is used for modular instrumentation and DAQ applications. The PXIe-8133 includes 10/100/1000BASE-TX (Gigabit) Ethernet and four Hi-Speed USB ports, as well as an integrated hard drive and other peripheral I/O.
NI PXle-5644R - 6 GHz Vector Signal Transceiver
Vector signal analyzer and generator 65 MHz to 6 GHz frequency range
80 MHz instantaneous bandwidth
24 channels of high-speed digital I/O
User-programmable with LabVIEW FPGA
NI PXle-2790 - 6 GHz Solid-State Power Combiner and Switch
Combine and switch signals from 10 MHz to 6 GHz
Ideal for multi-DUT cellular and wireless connectivity production test
Ability to store RF path calibration information in NI Switch Executive
Unlimited switch lifetime
50 ohm termination on channel and COM lines
NI 56XX Prototype PXle Slot Compatible RF Combiner 250 MHz - 6 GHz
MONITOR NOT INCLUDED
