Product Description
Overview

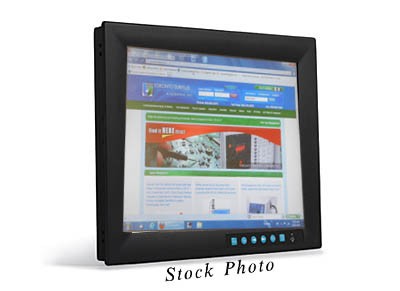

The National Instruments FPT-1015 is an industrial 15 in. color TFT LCD
flat panel touch screen monitor. Its large display area, VGA compatibility,
and interactive touch screen interface make it the ideal human-machine
interface (HMI) for high-performance PXI test applications and machine
vision applications based on the NI CVS-145x systems.
Rugged Industrial Design
The NI FPT-1015 features a rugged design with a stainless steel chassis,
aluminum front panel housing, and integrated NEMA4/IP65-compliant
touch screen flat panel display. Its compact industrial design conserves
space – an important consideration for the typically crowded plant floor –
and its reduced mounting depth is well-suited for 19 in. rack-mount
cabinets. It has a 15 in. TFT LDC color display with resistive analog touch
screen with tempered, antiglare glass that is also NEMA4/IP65-compliant.
The FPT-1015 features high shock, vibration, and temperature ratings,
and it meets global safety standards and agency certifications. To meet
special application requirements, both rack-mount and extended-length
VGA cables are available.
HMI for PXI-Based Systems
National Instruments PXI embedded controllers, which feature high performance
Pentium M processors, are fully compatible with other PXI
systems. These embedded controllers – when integrated into a PXI
chassis with choice of communication, I/O, or signal conditioning
modules – create a compact, rugged PC-based platform well-suited for
deployment in harsh environments. With its rugged industrial design and
operator-friendly touch screen interface, the FPT-1015 is an ideal HMI for
both PXI and real-time compact vision systems.
Display
Description............................................................................. XGA TFT LCD flat panel
Size ....................................................................................... 15 in.
Front-panel (bezel) ................................................................. Al-Mg, NEMA4/IP65-compliant
Touch screen .......................................................................... 8 wire, analog resistive with antireflective tempered glass
Resolution .............................................................................. 1024 x 768 (16.7 million colors)
Viewing angle ........................................................................ 140 deg (H), 120 deg (V)
Luminance.............................................................................. 250 cd/m2
Contrast ratio ......................................................................... 500:1
OSD controls .......................................................................... Brightness, contrast, horizontal/vertical position, system video information, and system reset
OS compatibility..................................................................... Windows 2000/XP
Video interface....................................................................... VGA
Screen control........................................................................ USB
Keyboard/mouse.................................................................... None
Backlight lifetime................................................................... 40,000 hours
Touch screen lifetime............................................................. 1 million touches @ single point
Power Requirements
External .................................................................................. 42 W
Power supply (included)......................................................... 100 to 240 VAC input 3.5 A @ 12 VDC output
Power consumption
5 V...................................................................................... 100 mA (USB)
Physical
Dimensions (w by h by d) ...................................................... 383 by 307 by 48 mm (15 by 12 by 1.9 in.)
Gross weight.......................................................................... 3.7 kg (8.2 lb)
Mounting................................................................................ Panel (standard), rack, wall, desk VESA mount supported
Environment
Operating temperature .......................................................... 0 to 50 °C (32 to 122 °F)
Storage temperature.............................................................. -20 to 60 °C (32 to 140 °F)
Relative humidity ................................................................... 5 to 95% (noncondensing)
Vibration, operating ............................................................... 5 to 17 Hz, double-amplitude displacement 17 to 500 Hz, 1.0 g peak-to-peak
