The direct reading meter of the model 8616 * W/ Accessories, has a 3 1/2 inch linear scale which covers a 13 dB dynamic range. The scale may be read in equivalent power density units ( mW/cm² ) or percent depending on the probe used. This meter permits measurements with excellent resolutuion over the 30 dB dynamic range of the probes.

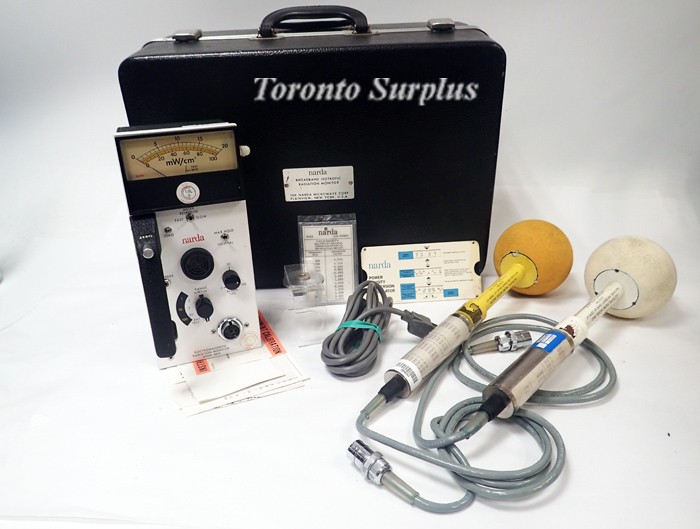

Isotropic Radiation Monitor Model 8616

• Dynamic Range: 30 dB
• Instrument Accuracy : ± 3%
• Recorder Output: +3V nominal at full scale into minimum load of 1000 ohms
• Line Operation: 115/230 VAC 50-400 Hz

Isotropic Probe Model 8623B

• Max Rated Power Density:  100mW / cm² (1000W / m² )
• 0.3-26 GHz

Isotropic Probe Model 8621

• Max Rated Power Density: 20mW / cm² (200W / m²)
• 0.3-26 GHz

 * Accessories include,

• 8621 Isotropic Probe
• 8621 Isotropic Probe
• Model 8630 Probe Mount

• Power Density Conversion Chart

• Field Density Chart
• AC Line Cord

• Shielded Carry Case
