Product Description

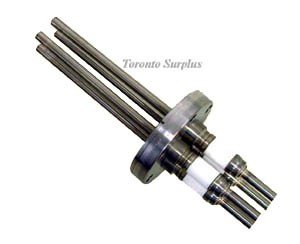

This is a custom unit for Medium and High Current applications. It has nickel conductors instead of copper.
1 Used with minor nick in knife edge that will be sealed with the copper gasket.
- SPECIFICATIONS:
- Conductor: Solid Nickel
- Max Current:150A
- Max Voltage:12000V
- 2-3/4" Del-Seal CF Flange
- Conductor length:
4.07" on vacuum side
1" on air side
1 Used with minor nick in knife edge that will be sealed with the copper gasket.
