Product Description

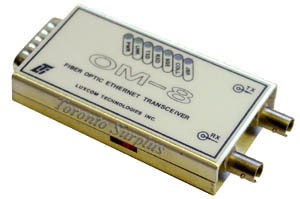

The OM-8 fiber optic Ethernet media converter attaches to a computer allowing the computer to connect to a fiber optic Local Area Network. The OM-8 media converter attaches to the AUI port on any IEEE 802.3 (Ethernet)compatible card. The signals are transmitted by the media converter over a pair of optical fibers. These fibers attach to any IEEE 10 Base FL port. As well, the OM-8 media converter can be connected back to back for a dedicated link and it can also interface with media converters from other manufacturers. The OM-8 is available with ST optical connectors.
Operating Distance: Multi-mode fiber 4 Km; Singlemode fiber 40 Km
Data Rate: 10 Mbps
- FEATURES:
- Compact
- 802.3-FL compatible
- Wide operating temperature
- Wide power supply voltage range
- Link indicator
- Power indicator
- Transmit data indicator
- Receive data indicator
- SQE indicator
- Collision and Jabber indicators
Additional specifications available upon request.
