FEATURES

• Differential, looping input
• 55 MHz bandwidth
• Eight outputs
• Continuously variable equalization for up to 1000 ft (300 m) of coaxial cable
• Gain range ±3 dB

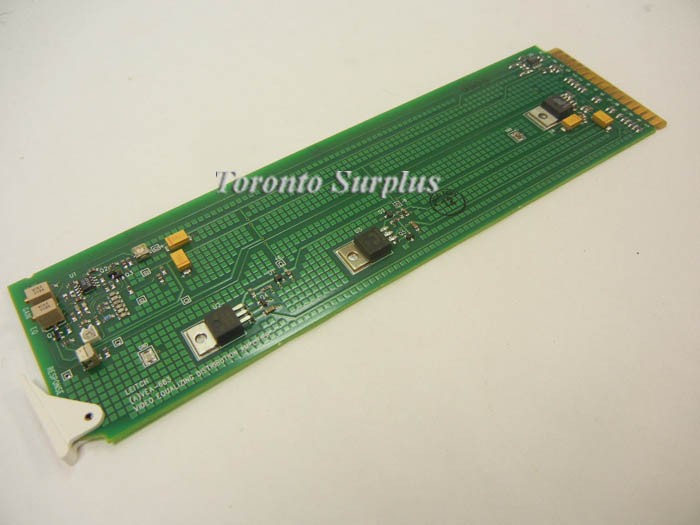

When distributing video signals through medium and large facilities, the VEA-683 distribution amplifier (DA) will provide hum removal and equalization for long cable runs of up to 1000 ft. The VEA-683 features 30 MHz bandwidth, differential input and continuously variable equalization for up to 1000 ft (300 m) of Belden 8281 coaxial cable. Optionally, the equalizer can be customized to accommodate other cable types. The VEA-683 is also suitable for use in analog component/composite and analog HDTV signal distribution.
