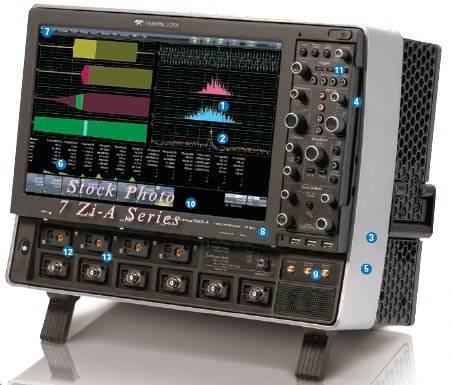

Lecroy WavePro 7Zi / 715Zi-A / 715Zi A Series Precision Digital Oscilloscope, Windows Vista operating system, HDMI & USB ports, 1.5 GHz, 10 GS/s, 4ch, 20 Mpts/Ch DSO
1.5 GHz, 10 GS/s, 4ch, 20 Mpts/Ch DSO with 15.4" WXGA Color Display. 50 ohm and 1 Mohm Input. 20 GS/s and 40 Mpts/Ch in interleaved mode.
| Bandwidth | 1.5 GHz |
| Analog Bandwidth (Max) | 1.5 GHz |
| Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input) | 1.5 GHz (≥10 mV/div) |
| Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input) | 500 MHz (typical) (≥5 mV/div) |
| Rise Time (10-90%, 50 Ω) | 235 ps (typical, flatness mode) |
| Rise Time (20-80%, 50 Ω) | 176 ps (typical, flatness mode) |
| Input Channels | 4 |
| Input Channels | 4 |
| Bandwidth Limiters | 20 MHz, 200 MHz, 1 GHz |
| Input Impedance | 50 Ω±2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe |
| Input Coupling | ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND |
| Maximum Input Voltage | 50 Ω: ±5 Vrms 1 MΩ: 250 V max. (peak AC: < 10 kHz + DC) |
| Channel-Channel Isolation | DC to 2 GHz: 46 dB (>200:1 VSWR) 2 to 4 GHz: 34 dB (>50:1 VSWR) 4 to 6 GHz: 26 dB (>20:1 VSWR) (For any two ProLink input channels, same v/div settings, typical) |
| Vertical Resolution | 8 bits; up to 11 bits with enhanced resolution (ERES) |
| Sensitivity | 50 Ω: 2 mV-1 V/div, fully variable (2-9.99 mV/div via zoom); 1 MΩ: 1 mV-10 V/div, fully variable |
| DC Vertical Gain Accuracy (Gain Component of DC Accuracy) | ±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V |
| Vertical Noise Floor (50 mV/div) | 1.0 mVrms (typical, 20 GS/s) |
| Offset Range | 50 Ω (ProBus): ±750 mV @ 10-170 mV/div ±4 V @ 172 mV/div -1 V/div 1 MΩ: ±1V @ 2-128 mV/div ±10V @ 130mV-1.28V/div ±100V @ 1.3V-10V/div |
| DC Vertical Offset Accuracy | ±(1.5% of offset setting + 1.5% F.S. + 1 mV) (typical) ±(1.5% of offset setting + 2.5% F.S. + 2 mV) (test limit) |
