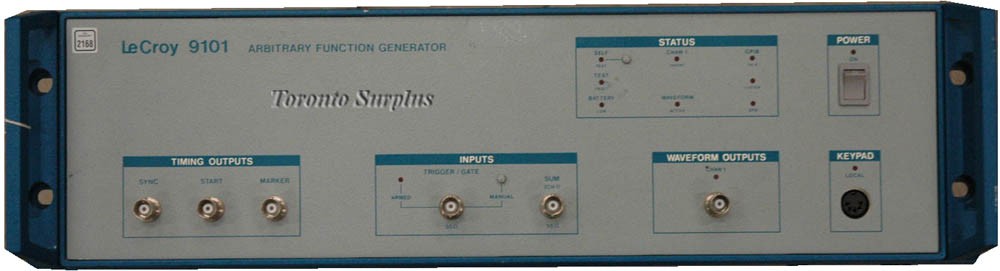

    LeCroy 9101 Arbitrary Function Generator

    Double click on above image to view full picture

    More Views

    • LeCroy 9101 Arbitrary Function Generator

    LeCroy 9101 Arbitrary Function Generator

    Part Number: sku7077
    Contact for price
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Category: FUNCTION

    Product Description

    LeCroy 9101 Arbitrary Function Generator

    Input: 115/220Vac; 47-63Hz; 150VA Max

    DC Accuracy    1.0%
    Resolution    8 bits (256 levels)
    Sinewave    Frequency Range: 0.01Hz to 25MHz
    Squarewave    Frequency Range: 0.01 to 100MHz
    Triangle    Frequency Range: 0.01Hz to 25MHz
    Linearity    +/-1%
    Ramp - Period    40nsec to 100sec

    This generator is a high performance ATE or benchtop instrument which can generate either standard or user defined complex waveforms with unparalleled point to point resolution.The 9101 is a single channel version of the LeCroy 9100 Dual Channel Arbitrary Function Generator and is, in most respects, compatible with it. This means that dual channel waveform files may be stored in this unit and run, even though only channel 1 will be generated.

    Similarly, setup files containing channel 2 setup may be run.

    This generator has been designed to operate from either a 115V or 220V nominal power source.

    On the rear panel of the instrument, a switch permits user selection of either voltage.


        * Standard Functions.
        * Selectable Orientation.
        * Greater Accuracy.
        * Full Scale Amplitude.
