Product Description

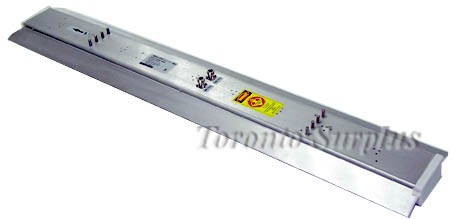

J23017S00-60N, 2.3 - 2.7 GHz, 60º Dual Slant 45º Polarization
Wimax/Broadband Wireless
2.5 GHz high performance 60° beam-width
Dual 45° slant sector antenna
The Cushcraft J23017S00-60N 2.5 GHz wide band dual slant sector antenna covers the frequency band from 2.3 - 2.7 GHz. Extremely low side lobes, null fill below the horizon and uniform energy distribution within the coverage area are realized thanks to Cushcraft's highly skilled engineering staff and the utilization of our proprietary Artificial Intelligence RF Optimization development tool. The antenna exceeds all aspects of ETSI EN 301.525 CS. Cushcraft's suite of high performance sector antennas feature proprietary design elements (patent pending) resulting in extremely high levels of system performance and ruggedness while maintaining very slim profiles with low wind and ice loading.
- Rugged tilt mount hardware included
- Low side lobe performance
- Null fill below the horizon
- Excellent f/b ratio
- High level Antenna to Antenna co-located isolation
- Optimized for Maximum Ration Combining
16.5 dBi
Max VSWR: 1:8:1
3dB Beamwidth, Elevation Plane - 7 Degrees
3dB Beamwidth, Azimuth Plane - 60 Degrees
Elevation Null Fill - Down to -25 Degrees
Azimuth Sidelobes - ETSI EN 301.525 CS
Polarization: 45 Degrees and -45 Degrees
Port to Port Isolation: >25 dB
Front to back ratio: >35 dB
Max Input Power: 10 Watts
Input Impedance: 50 ohms
Min. Front to Back Isolation: ETSI EN 301.525 CS
Min Cross Polarization: ETSI EN 301.525 CS
Mechanical Size: 39.9 x 6.9 x 4.0 in
Weight: 3.2 kg
Wind Survival Rating: Operation 100mph, Survival 136mph
Antenna Connector: N (female)
Mounting Style: Mast mount
Temperature: -40 - 70 degrees celsius
Lightening Protection: DC -grounded
*Note: Mounting kit (Heavy Duty Sector) included.
