Product Description
Product Details From Manufacturer

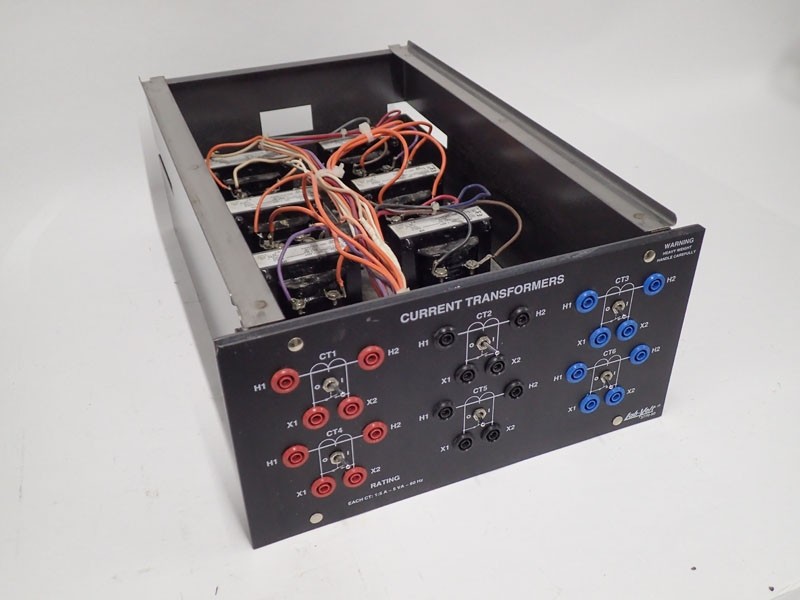

The Current Transformers consist of a set of six instrument-type current transformers installed in a half-height
EMS module. Each transformer is equipped with a switch, mounted on the front panel, that allows the
secondary winding to be short-circuited. Current transformer ratios have been carefully selected to match the
power equipment with the protective devices
Specifications
Current Ratio - 1:5 A
Primary Impedance - 2.5Ω
Apparent Power - 5 VA
Accuracy - ±2%
Cosmetic Notes
Signs of scuffing on outer frame and dust in crevices, cosmetic in nature, see pictures.
Testing and Functional Notes
This item is TESTED & WORKING, as pictured. See above for any additional notes.
The Current Transformers consist of a set of six instrument-type current transformers installed in a half-height
EMS module. Each transformer is equipped with a switch, mounted on the front panel, that allows the
secondary winding to be short-circuited. Current transformer ratios have been carefully selected to match the
power equipment with the protective devices
Specifications
Current Ratio - 1:5 A
Primary Impedance - 2.5Ω
Apparent Power - 5 VA
Accuracy - ±2%
Cosmetic Notes
Signs of scuffing on outer frame and dust in crevices, cosmetic in nature, see pictures.
Testing and Functional Notes
This item is TESTED & WORKING, as pictured. See above for any additional notes.
