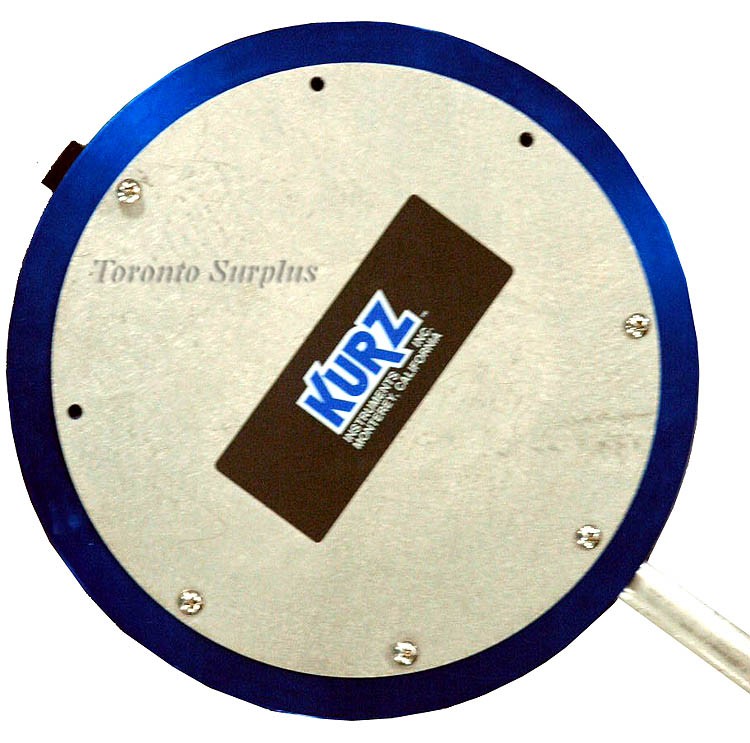

Kurz Instruments K-BAR-16-MT / 196TA4 753621-04-03-02-21-02-12-01 Mass Flow Transmitter

Mass Air Flow Sensor with milti-point insertion


• 753621: Parent #
• -04: Sensors, 4
• -03: Sensor Material, Alloy C276
• -02: K-Bar Material: 316L Stainless Steel
• -21: Sensor Electronics Enclosure Config.: Directly Attached Sensor Electronics Enclosure. Model 196TA-4CE, for use with up to four (4) sensors, anodized aluminum body with stainless steel covers and 1" FNPT conduit hub. Meets CE Compliance.
• -02: Mounting: No Flange
• -12: Air Velocity Cal Data Range: 4000 SFPM
• -01: Process Temperature Compensation: Standard Temperature Compensation (STC) over process temperature range of -40°C to +125°C, all gases. Accuracy: ± [(1% + .025%/°C) Reading +(20SFPM + .25 SFPM/°C)] Above or below 25°C
