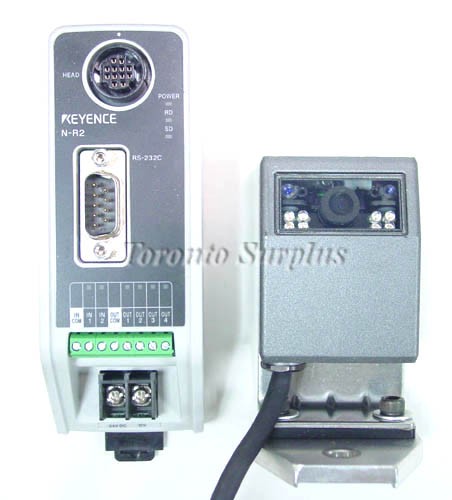

Model N-R2

Interface: RS-232C

Code reader power supply: 5 VDC ±5% (650 mA)

Terminal block Input

Number of inputs: 2 inputs (IN1 and IN2)

Input type: Bidirectional voltage input

Maximum rating: 26.4 VDC

Minimum ON voltage: 15 VDC

Maximum OFF current: 1 mA

Output


Number of outputs: 4 outputs (OUT1 to 4)

Output type: Photo MOS relay output

Rated load: 30 VDC, 100 mA

Leakage current when OFF: 0.1 mA or less

Residual voltage when ON: 1 V or less

Communication Specifications: Head port


Number of inputs: 1 (12-pin round connector)

Supported communication standards: RS-232C compliant

Communication speed: 4800, 9600, 19200, 31250, 38400,57600, 115200 bit/s

Data bit length: 7/8 bits

Stop bit length: 1/2 bits

Parity check: None/even/odd

Communication Specifications

Communication Standard: RS-232C compliant

Connector: 1 (D-sub 9-pin connector)

Communication specifications: Output interface


Total extension length: 15 m or less (including the head cable)

Rating

Power voltage: 24 VDC +10 %, -20 %

Current consumption: 380 mA or less

Environmental Resistance

Operating environment: No dust or corrosive gas present

Ambient temperature: 0 to +50 °C (No freezing)

Storage temperature: -20 to +60 °C (No freezing)

Relative humidity: 35 to 85 % RH (No condensation)

Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Weight: Approx. 135 g

 Model: SR-510

Type: Middle-range

I/O specifications: Trigger/preset input

No-voltage input (with contacts, without contacts) for each input * TTL input is also possible.

Output: 4-output (OK, NG, ERROR, and BUSY) NPN open collector

Rated load: 24 VDC, 30 mA

Leakage current (at OFF): 0.1mA or less

ON residual voltage: 0.8V or less

Serial interface: Communication method

Conforms to EIA RS-232C

Communication speed: 9,600, 19,200, 38,400, 57,600, 115,200 bps


Output:  600 µW

Pulse duration: 200 µs

Reading specifications

Reading distance (typical examples): Barcode: 60 to 110 mm (narrow bar width: 0.127 mm), 60 to 180 mm (narrow bar width: 0.25 mm), 55 to 250 mm (narrow bar width: 0.5 mm); 2D code: 55 to 125 mm (cell size: 0.25 mm), 60 to 140 mm (cell size: 0.33 mm), 45 to 180 mm (cell size: 0.5 mm)

Reading view range: 60.9 × 45.6 mm (distance: 100 mm), 116.3 × 87.2 mm (distance: 200 mm)

Voltage: 5 VDC + 5% to 10%

Current consumption: 400 mA or less

Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 3 hours in each of the X, Y, and Z directions

Weight: Approx. 274 g (including the cable)
