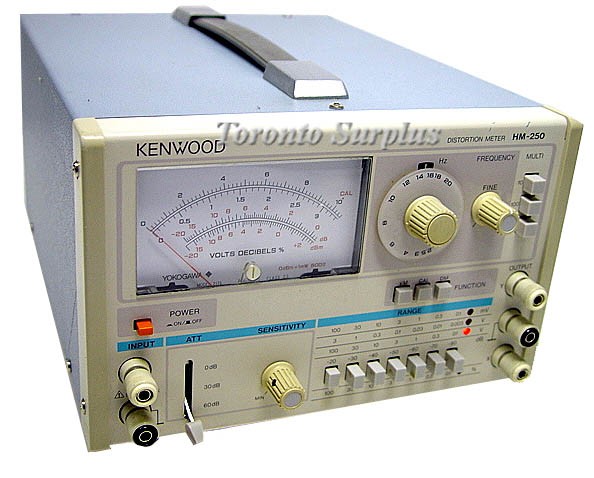

Kenwood HM-250 Distortion Meter

The HM-250 is a distortion meter capable of 0.1% full scale measurement continuously over the frequency range of 20 Hz to 20 kHz with a typical residual distortion of 0.01%. It makes full use of pushbutton switches and provides a calibration which can be activated with a single operation regardless of the selected distortion measurement range. Carrier frequency elimination is performed by an automatic tuning technique thereby greatly simplifying operation. The HM-250 is also usable as a high-sensitivity (100…V f.s.) AC voltmeter.


FEATURES:
Distortion Measurement
AC Voltage Measurement
Automatic Tuning
High Sensitivity
Single-Operation Calibration
X-Y Outputs for Waveform Observation


Dimensions approx: 8.75W x 11.25L x 6"H
Weight: 3.7 kg (8.15 lb)

Specifications available upon request.
