Product Description

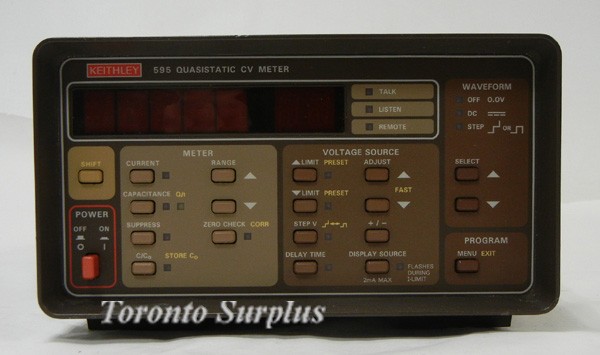

Keithley 595 Quasistatic CV Meter, 10fF-20nF, DC Current 1 fA-200uA, Output -20-20V, Max. Input 30V peak
- 4 1/2 Digit LCD Display
- DC Current 1 fA-200uA
- Output -20-20V,
- Analog Output: + 1V= 10,000 counts on x1 gain; 1V=1000 counts on x10 gain
- Max Input 30V peak
- Power 105-125VAC or 210-250VAC, 50-60 Hz, 15 VA Max.
Quasistatic C-V measurements are commonly applied to characterize MIS devices. They are used in the measurement of interface trap density and doping profiles corrected for the presence fo interface traps. Quasistatic C-V is also used to measure mobile ion density by the triangular voltage-sweep method.
Features:
