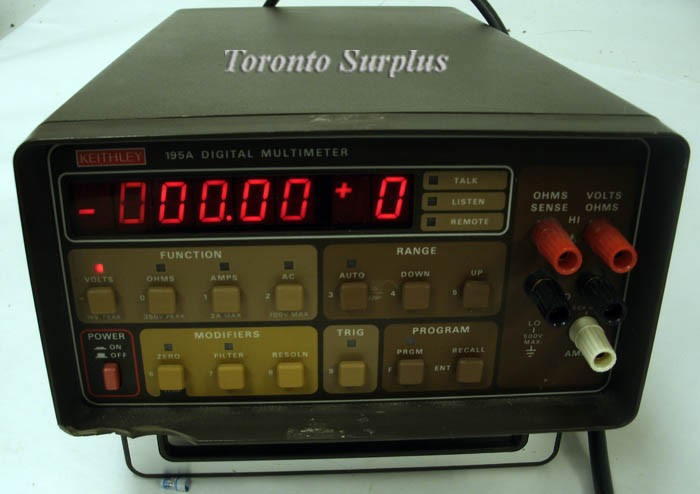

Product Description
General Specifications
DISPLAY
- Six 0.5" LED digits with decimal point, exponent and polarity. Function and IEEE bus status also displayed
RANGING
- Maunual or fast auto ranging ( 1450ms per range change on DCV )
ISOLATION
- Input LO to IEEE LO power line ground: 500V Max, 5 x 10 (5)V Hz greater than 10 (9) ohm parrelled by 300pF
WARM UP
- One hour to rated currency.
OPERATING ENVIRONMENT
- 0°-50° c 0% TO 80% Relative humidity up to 35°C
POWER
- 105-125V or 210-250V ( internal switch selected ), 50Hz to 400Hz, 24V A maximum.
CONNECTORS
- Analog : Switch selectable front or rear, 5 way gold plated binding posts.
- Digital : Trigger input and Voltmeter Complete output on rear panel.BNC's
