Product Description
- 80% less Impact than conventional drivers
- Less Torque Reaction
- Ideal for use on hard discs, LCD's and high density PCB's

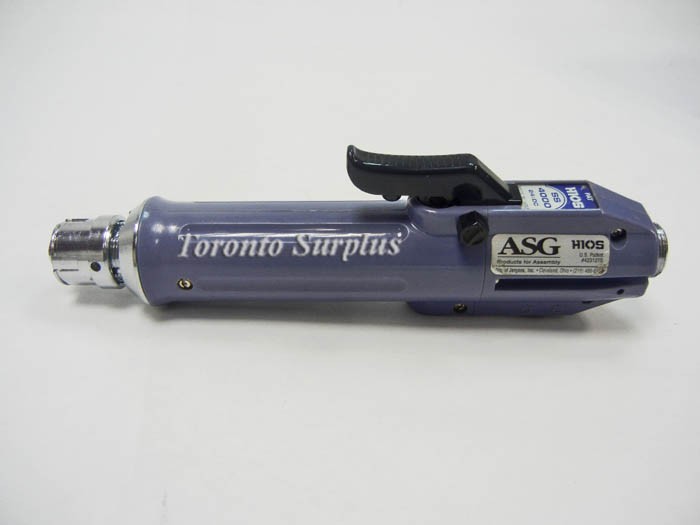

The SS Series is a new type of electric Screwdriver that reduces impacts by approximatley 80% when fastening. They are ideal for use on such impact-sesitive assemblies as hard discs,LCD's or high density printed circuit boards.
The SS Series toolspovides extra shock absorbing features. A unique, ergonomic clutch delivers less torque reaction to the operator. Full Torque control while in reverse mode makes these tools agreat choice for rework applications, You may choose drivers with either a standard 1/4" Hex collet or a 4.0mm collet ( recommended when working on very small fasteners, or when driver is used wuith a vacuum, pick up system)
Torque: 0.9 to 3.9 lbf-in, 0.1 tp 0.45 N-m, 1 to 4.5 kgf-cm
Drive Size: 1/4" Hex
Approximate RPM: 1000@ 30VDC, 670@ 20VDC
Length: 7.5"Speed\
Diameter: 1.125"
Weight: 14 oz]
Speed: Hi 1000 Low 690rpm.
Screw Size: Small Screw Size 1.4 - 2.6mm Tapping Screws 1.4 - 2.3mm
Bit Type: Hios H4
