Product Description
- 2 Wire 4 to 20 mA Output

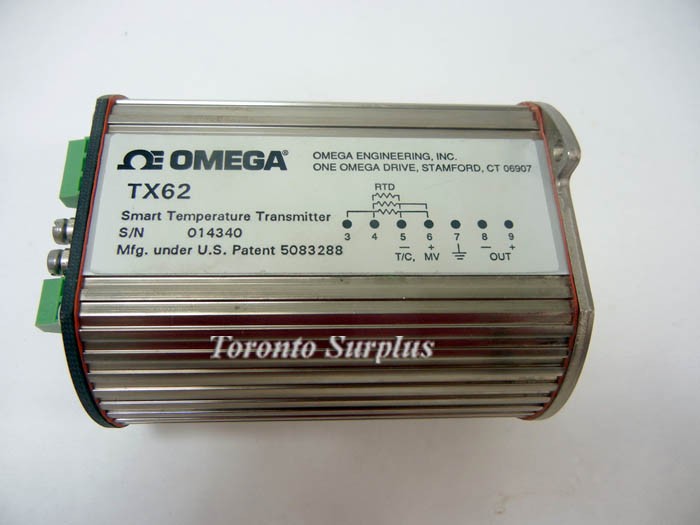

- TX62 and TX64 Models for Thermocouple and RTDs
- TX63 Models for mV, mA, V, Resistance
- Input to Output Isolation
- Linearized Output
- Set Zero and Span to Any Desired Range No Minimum Span
- Hardened to EMI/RFI Interference
- Rugged, Sealed, Industrial Design
- Probe Assembly and Housing Option
- Reference Condition Accuracy: Equal to transmitter repeatability
- Turn-On Time: Less than 5 seconds after power-up.
- Ambient Temperature Gradient: Automatic compensation to 20°C/hour change.
- Isolation: 850 Vdc or peak ac
- Common Mode Rejection: 120 dB
- Reverse Polarity Protection: 42Vdc applied with either polarity
- Power and Load: Supply voltage, 12 to 42 Vdc; minimum supply voltage under load, Vs = 12 + R (load in kΩ) X 23 mA; for digital operation, R(load) = 250 Ω minimum.
