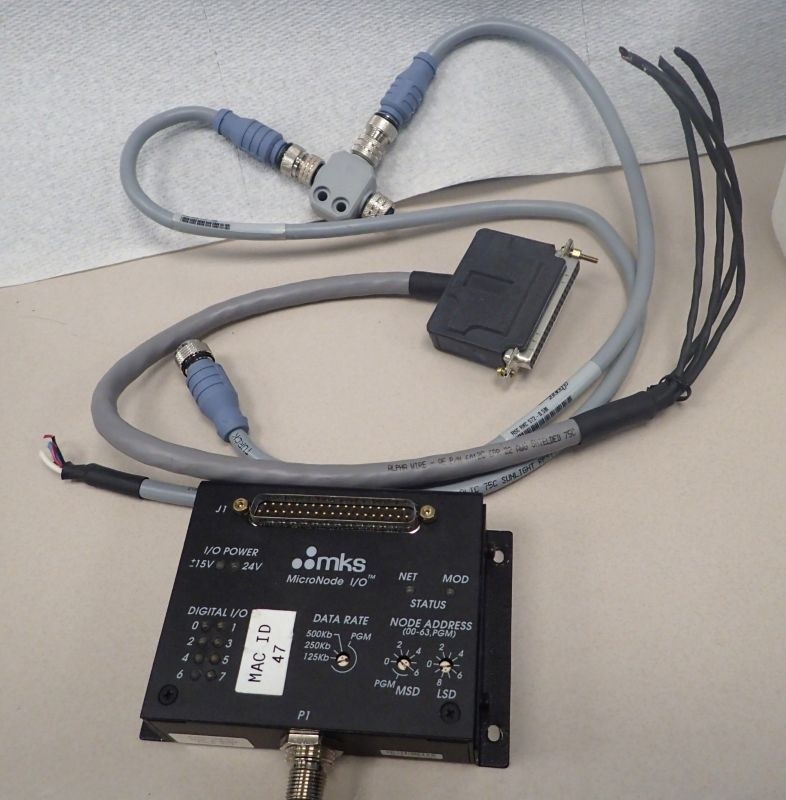

MKS AS00124-01 MicroNode I/O Compact Networked I/O with Turck  RSC RKS 572-2M / Alpha Wire 6012C Cable Assembly

Profibus and Ethernet based fieldbus networks. Additionally, the Ethernet versions contain cLogic™, an on-board C-compiler to handle the distribution of real-time logic tasks. Micronode™ I/O products reduce network and main controller bandwidth limits by offloading time critical tasks.

Features & Benefits:

•     Built-in cLogic™ compiler - allow low level sequence execution, I/O ramping and limited filtering.
•     A mixture of Digital and Analog I/O - makes selection of a cost-effective product easy.
•        IP 61 rated - works in harsh industrial environments.
•     Embedded web servers - a graphical user interface for setup and diagnostics with a web browser.

Applications:
Fieldbus gateway for a direct I/O activated device (such as power supplies, generators, manifolds)

Description:
Networks
    Fieldbus:  DeviceNet™ and Profibus®
    Ethernet:  Modbus/TCP™ and Ethernet/IP™

I/O Configurations:

MicroNode™ Combo:  Combo - 8 Analog Inputs, 4 Analog Outputs, 8 Digital Inputs/Outputs (sink)

Unit comes with the following cable/connector assemblies:

1) TURCK RSC RKS 572-2M:
Features:
5-Pin Cordsets
NEC PLTC and CEC Approvals
NEMA 6P/IP67 Seal Rated
Foil Shielding
Cable Jacket Material: PVC
MKS AS00124-01 MicroNode I/O Compact Networked I/O with Turck  RSC RKS 572-2M / Alpha Wire 6012C Cable Assembly
Specifications:
Brand/Series         :        RSC
Connector Type    :        Eurofast
Current, Rating    :         4 A
Length    :                      2 m
Material, Jacket    :        PVC
Primary Type    :            Cordset
Temperature Rating :    -40 to +80 °C
Type    :                          Straight Female
Voltage, Rating    :         250 VAC
(Cable that meets the requirements of ODVA Thin/Type 1 Cable and Thick/Type II Cable.)

2) Alpha Wire 6012C Cable Assembly with RS232 37 Pin Connector

Conductor Size AWG: 22AWG
Jacket Material: PVC (Polyvinyl Chloride)
