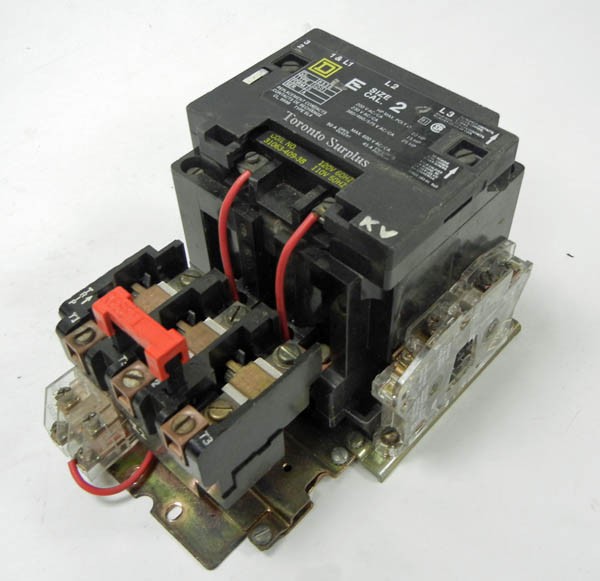

Square D 8536-SDO1V02S / 8536SDO1V02S NEMA Size 2 Starter, 600V, 45A Contacts, 3 Phase,120V Coil with SX-7 Series B Electrical Interlock and S04 Overload Module

Type S magnetic starters are used for full voltage starting and stopping AC squirrel cage motors.  Type S starters are designed for operation at 600 Volts AC, 50-60 Hz.

• Type S
• 8536: Full Voltage Starter, NEMA Selection. 3-Pole Polyphase - 600 Volt AC Max 50/60 Hz - with Thermal Overload - Three Thermal Heater Elements Required (customer supplied)
• SD01S SER A:
  • NEMA Size 2
  • Continuous Current Rating: 45
  • Motor Volts/HP: NOTE: 120 V Polyphase Starters are Wired for Separate Control
  • Type: Open
• V02: Coil 31063-409-38, Voltage 110 V @ 60 Hz / 120 V @ 50 Hz
• 9999SO4: Overload Contact
