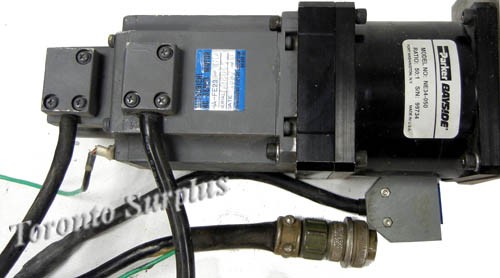

Mitsubishi HA-FE23 UL AC Servo Motor with Parker Bayside NE34-050 NE Series High Efficiency, Lightweight Gear Head

Mitsubishi HA-FE23 Servo Motor Specifications:

Rated Output(W) : 200
Rated Speed(r/min) : 3000
Rated Torque(N.m / oz.in) : 0.64 / 90.7
Rated Speed (r/min) : 3000
Max. Speed (r/min) : 4000
Instantaneous permissible speed (r/min) : 4600
Maximum torque (N.m / oz.in) :  1.9 / 269
Power rate at continuous rated torque (kW/s) :11.7
Rated current (A) : 1.3
Max. current (A) :3.9
Speed/position detector : Encoder common to absolute position and incremental detection systems (Resolution per servo motor 1 rotation: 8192 pulse/rev)


Parker Bayside NE34-050 Gear Head:

Gear Ratio: 50.00 x :1
Rated Output Torque: 180 In-lbs
Maximum Input Speed: 5000 RPM
Backlash: 10.00 arcmin
