Product Description

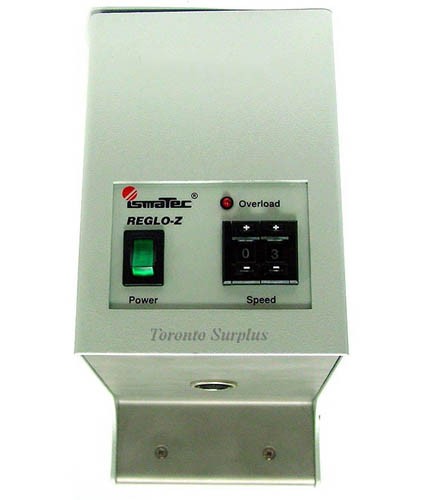

Ismatec Reglo-ZS ISM896 CONTROL UNIT ONLY
NOTE: Control Unit ONLY, AS PICTURED
NOT Included: Pump Head, Gear Pump Drive and Connecting Cable etc
FEATURES & SPECIFICATIONS:
- Flow rates: 1 – 3290 ml/min (depending on mounted pump-head, NOT incvluded)
- Motor speed: 50 – 5000 rpm, adjustable in 1% steps
- Speed setting: 2-digit potentiometer
- Speed control: Closed loop control for pressure independent speed
- Analog input: Speed control (0–5 or 0–10V / 0–20 or 4–20mA)
- Analog output: Speed monitoring (0–10 kHz)
- Digital input (TTL level): Start/Stop
- Differential pressure: max. 5.2 bar / 75.4 psi (depending on pump-head)
- Motor type: DC motor
- Power consumption: 50 W
- Power supply: 115/230VAC; 50/60Hz
- Protection rating: IP 30
- Depth / Width / Height: 178 x 100 x 143 mm (7" x 3.9 " x 5.6 ")
- Weight: 2.2 kg (4.6 lb)
- Accessories: None
- Special characteristics: The rotation direction of Ismatec gear pumps is not reversible
