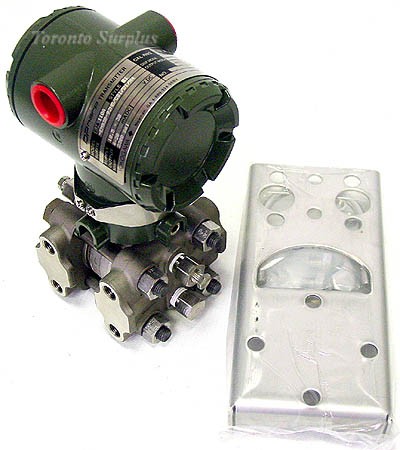

Yokogawa DPharp EJA 110A Differential Pressure Transmitter with Mount

Model & Suffix Codes: EJA110A EMS3B-92NB/CS1/D1/N4

EJA110A: Differential pressure transmitter
E: Output Signal; 4-20ma
M: Measurement Span (Capsule); 1 to 100 kPa {100 to 10000 mm H2O} {4 to 400 in H2O} {10 to 1000 mbar}
S: Wetted parts material; Body SCS14A, Capsule SUS 316L ^*5, Vent plu SYS316 ^*13
3: Process connections;with 1/4 NPT female process connector
B: Bolts and nuts material;SUS630 Maximum working pressure 16 MPa {160 kgf/cm²} ^*9
9: Installation; Horizontal impulse piping type, left side high pressure ^*8
2: Electrical connection; 1/2 NPT femail, two electrical connections without blind plug
N: Integral indicator; (None)
B: Mounting bracket; B SUS304 2-inch pipe mounting (flat type)
CS1: CSA approvals
D1: Calibration units;^*1 P calibration (psi unit)

Additional specifications available upon request.
