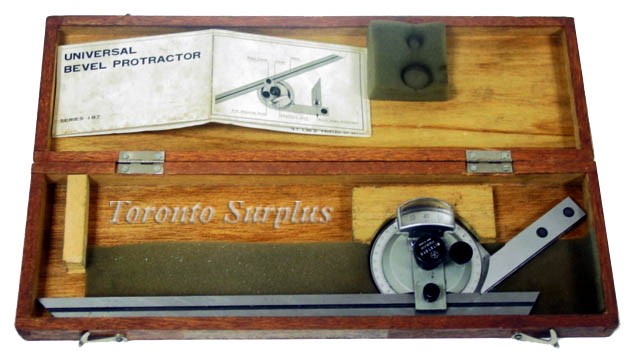

Mitutoyo 187 Series 187-901 Universal Bevel Protractor

Series 187

Mitutoyo Universal Bevel Protractor is a high precision angle gage for setting and inspecting all types of machines, metal modls and jigs. Mitutoyo Universal Bevel Protractor iss upplied with blades, an acute angle attachment, a holder for height gage and magnifying glass.

Mitutoyo Universal Bevel Protractor is more valuable and useful than a conventional angle gage on the fact that fine adjustment of the blade can be obtained by the fine adjusting knob after untightening the clamp at the center, thus any angle can be laid out or measured with high accuracy.

Features:

1. Mnimum reading is 5 minutes

2. Min scale and vernier scale are on the sae plan to eliminate reading parallax.

3. Fine adjustment of the blade insures precision measuring and laying out of angle.

4. Main parts are of hardened stainless steel to prevent rust.

5. Combined with an attachment or Height Gage, a wide range of measurements are available.
