Product Description

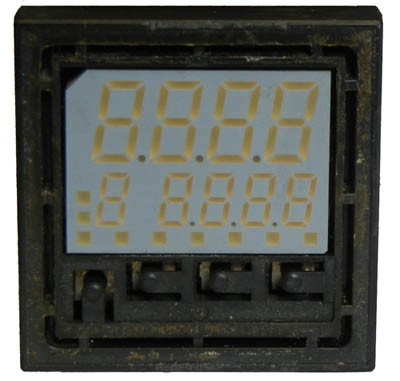

NOTE - Used, Working BUT NO Touchpad Membrane on Front Panel. It looks like the main photo you see, not the second photo
Features
- IP66/NEMA4 (indoor use) front face.
- Modular structure, one-stock type.
- Heating/cooling control.
- Serial communications (RS-232C and RS-485).
- Temperature and analog inputs.
- High-accuracy: 100 ms sampling (for analog input).
- Advanced tuning which includes fuzzy self-tuning.
- Conforms to international EMC and safety standards.
Ratings
| Supply voltage: | 100 to 240 VAC, 50/60 Hz |
| Power consumption: | 15 VA |
| Operating voltage range: | 85% to 110% of rated supply voltage |
| Input: | Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII Platinum resistance thermometer: JPt100, Pt100 Current input: 4 to 20 mA, 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 1 to 10 V |
| Input impedance: | Current input: 150 Ω Voltage input: 1 MΩ min. |
| Control output: | According to Output Unit (see Output Unit Ratings and Characteristics) |
| Auxiliary output: | SPST-NO, 1 A at 250 VAC (resistive load) |
| Control method: | ON/OFF or 2-PID control (with auto-tuning) |
| Setting method: | Digital setting using front panel keys |
| Indication method: | 7-segment digital display and LEDs |
| Other functions: | According to Option Unit (see Output Unit Ratings and Characteristics) |
*Made in Japan
