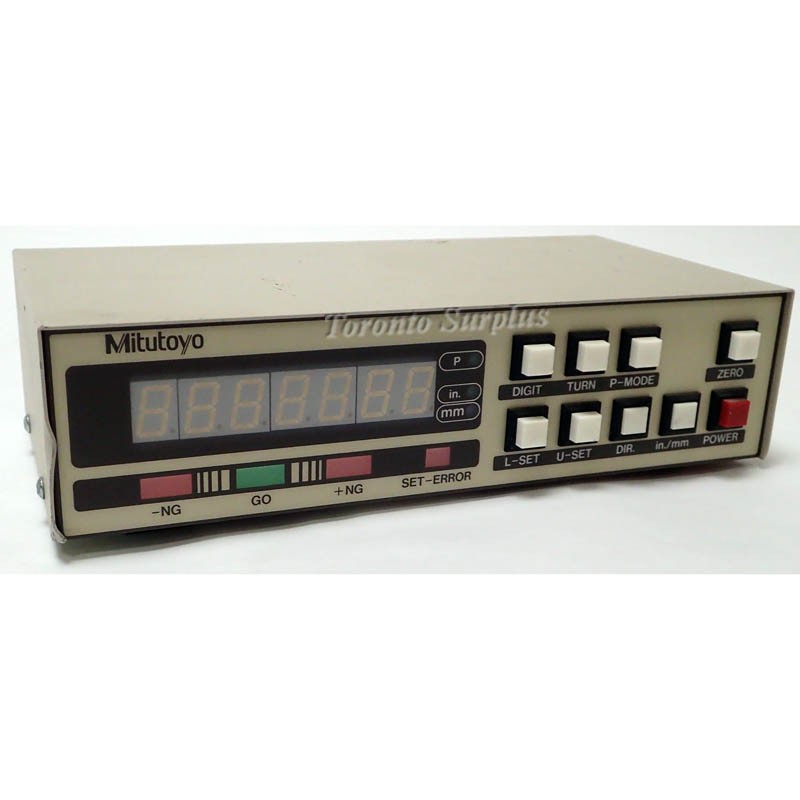

Mitutoyo SD-D2E Display

Code no. 572-031

The Digimatic Display Unit offers a large LED display for a Digimatic Scale Unit. The bright LED readout is ideal for low-light situations or when the scale unit must be inserted into an area where its own display cannot be viewed directly. Two types of single-function and multi-function are available on the Digimatic Display Unit.

• Scale input port: 1
• Display: 6-digit green LED
• Functions:  Zero-setting, SPC data output, Error alarm, Presetting, GO/±NG judgment, GO/±NG output, Counting direction switching
• Power supply: 9V DC, 500mA (via AC adapter **not included**)
• Dimensions (WxDxH): 236 x 120 x 66mm
• Mass: 1.3kg
