Product Description
FEATURES
- Lets you connect a MicroLogix controller or other DH-485-capable RS232-C device to the DH-485 network
Allows a MicroLogix controller to initiate or respond to communication with any other device (SLC 500 processors, other MicroLogix controllers, operator interfaces, or programming devices) on the network
SPECIFICATIONS
Specifications 1761-NET-AIC

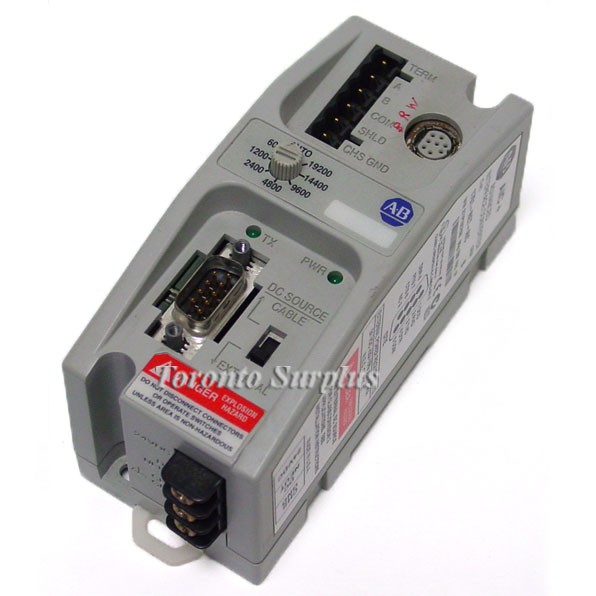

Description: AIC+ advanced interface converter
Communication Interface: 2 RS-232 ports, 1 DH-485 port, DH-485 protocol on all ports for networking
Power Supply DC Voltage Range: 20.4…28.8V DC
Current Draw (mA) at 24V DC: 120 mA
Inrush Current, Max.: 200 mA @ 24V
Isolation Voltage: Tested at 500V DC for 60 s
Operating Temperature: 0…60°C (32…140 °F)
Nonoperating Temperature: -40…85°C (-40…185°F)
Relative Humidity: 5…95% noncondensing
Vibration Operating: 10…500 Hz, 5.0 g, 0.030 in. peak-to-peak, 2 hour each axis
Operating Shock: 30 g, ±3 times each axis
Nonoperating Shock: 50 g, ±3 times each axis
