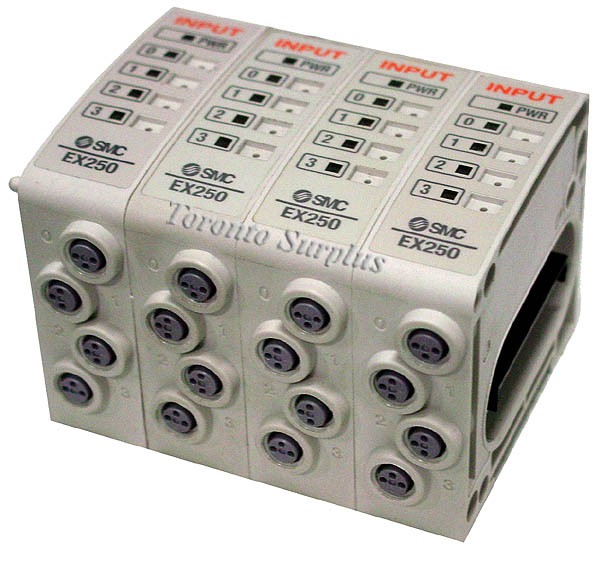

SMC EX250-IE3 / EX250IE3 Input Block

Operating Ambient Temperature:            -10 to +50 Degrees Celsius
Operating ambient humidity:                    35 to 85% RH (no condensation)
Storage Ambient Temperature:               -20 to +60 degrees celsius
Enclosure:                                                IP67
Input Point:                                               4 points
Input Connector:                                      M8 Connector
Corresponding Sensors:                          Current source type (PNP output)
                                                                 Current sink type (NPN output)
Rated Voltage:                                          19.2 to 28.8 VDC
Logic "1" input voltage VH:                       11 to 30 V
Logic "0 input voltage VL:                         -3 to +5V
Logic "1" input current IH:                           8 mA typ.

Two wire sensor connection:                    Possible
Logic "0" allowable current IL:                  max 2.5 mA
Input delay time:                                       3 msec. Typ
Sensor supply current:                             Max. 120 mA/input block (30 mA/sensor)
Short circuit Protection:                            Fuse cut over 500 mA each input block

Fuse: 0.5A, 48VDC
