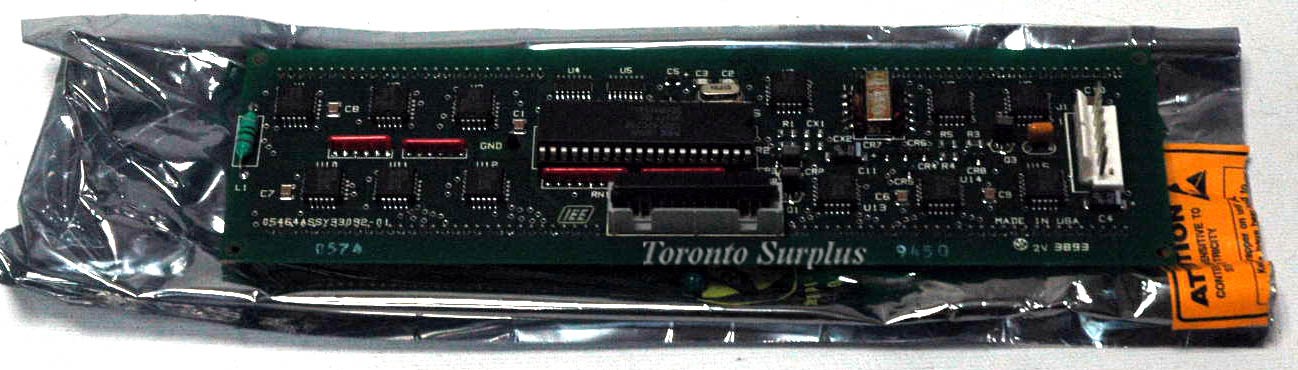

IEE 03601-51-080D / 0360151080D Flip Alphanumeric Fluorescent Display BNIB / NOS

2 line vacuum fluorescent display, 40 characters wide. The characters are formed using a 5.7 dot matrix.

This unit may be used as a console display which provides alphanumeric information that is easily readable in high ambient light. It is ideal for point of sale terminals, office computers and a wide range of business and industrial equipment.

This Vacuum Fluorescent display is a self-contained multiplexed unit which provides simple interface to microprocessor systems. The unit consists of a vacuum fluorescent display tube and a minimal amount of electronic hardware. Primary complexity is contained within the microprocessor software, which controls all display functions.

A single +5VDC power supply (approx. 910mA typical for brightest setting) is required for operation. Total power is about 4.6watts.

All display characters and standard control codes are in a 8-bit format. All inputs are TTL compatible. No usual coding or critical timing is required to interface with and operate this display.

A wide spectrum of color filters is available to fit all applications. The characters are bright, but soft, providing comfortable short or long term viewing.

An ASCII-coded English font employs a standard 96 character set and an extended European character set with 3 user defined characters.

Special Features:

(3) User Defined Characters

Software Dimming

Hardware interrupt

Hardware reset

Extended / European character set

SMT- Compact package
