Product Description

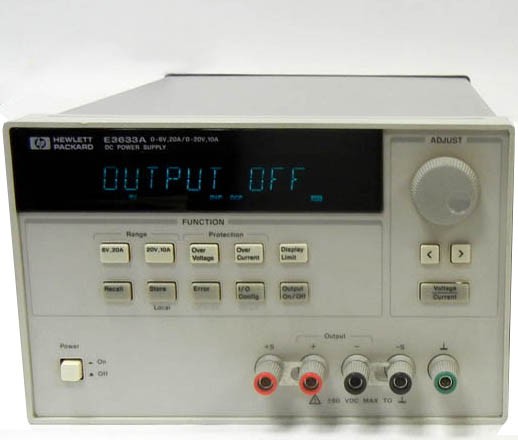

The Agilent 200W, GPIB, single output E3633A is a high performance supply optimized for manual and basic automated testing; and, with a combination of benchtop capabilities and system features, it is designed to help improve measurement quality and reduce test time.
Output ratings
Range 1: 0 to 8 V, 20 A
Range 2: 0 to 20 V, 10 A
Programming accuracy at 25°C ±5°C
Voltage: 0.05% + 10 mV
Current: 0.2% +10 mA
Ripple & noise (20 Hz to 20 MHz)
Normal-mode voltage: <350 µVrms/3 mVpp
Normal-mode current: <2 mA rms
Common-mode current: <1.5 µA rms
Readback accuracy at 25°C ±5°C
Voltage: 0.05% + 5 mV
Current: 0.15% + 5 mA
DC Output Rating (0 ºC to 40 ºC) 0 to 8 V/20 A or 0 to 20 V/10 A
