Product Description

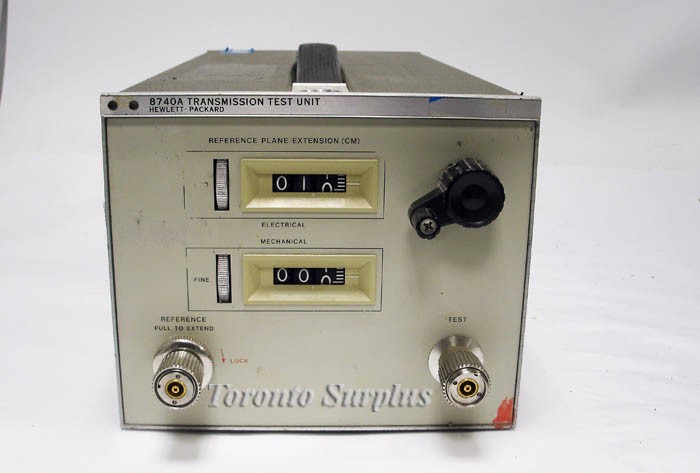

The 8740A Transmission Test Unit is an RF power splitter and calibrated line stretcher for transmission measurement with network analyzer. DC to 12.4GHz. Reflection coefficient is less than 0.07 over DC to 7GHz range and less than 0.11 over 7 to 12.4GHz range.
Key Features & Specifications
DC Output Ratings
- Voltage: 150V
- Current: 22A
- Power: 3300W
Programming Accuracy
- Voltage: 0.05% + 75mV
- Current: 0.1% + 44mA
Output Ripple and Noise
- CV p-p: 100mV
- CV rms: 25mV
