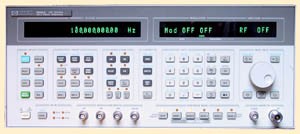

The 8645A Agile Signal Generator provides specified signal performance in both static and agile operation. Fully-synthesized outputs with high timebase accuracy are standard when not frequency hopping. The Fast Hop mode activates a frequency-lock loop to allow frequency switching as fast as 15 µs from 128 to 1030 MHz. Over the frequency range of 8 to 1030 MHz, the fastest switching time is 85 µ and outputs below 8 MHz require 500 µs.

FEATURES:

• 252 kHz - 1030 MHz Frequency Range
• 15 µs Frequency Switching
• Standalone Control of Frequency Agility
• Specified Performance While Fast Hopping
• FM Rates to 10 MHz Deviations to 20 MHz
• Low Spurious and Phase Noise

Additional specifications available upon request."
