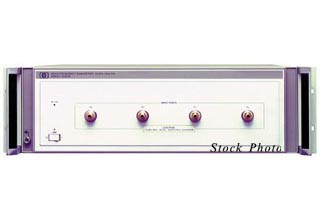

Frequency Converter, 45 MHz to 26.5 GHz

The Agilent 8511A, a 45 MHz to 26.5 GHz frequency converter, when combined with the Agilent 8510C Network Analyzer results in a general purpose four-channel magnitude/phase receiver. Add your own power splitters for transmission measurements, and bridges or directional couplers for reflection measurements. Since one input is used for system phase-lock, the other three inputs are available for measurements of multiport devices, subsystems, and antennas. All four inputs on the Agilent 8511A have precision 3.5 mm connectors.

Specifications


•     Four channel receiver/signal processor
•     Frequency Range from 45 MHz to 26.5 Ghz
•     Four separate RF to IF converters
•     Excellent RF source tracking
