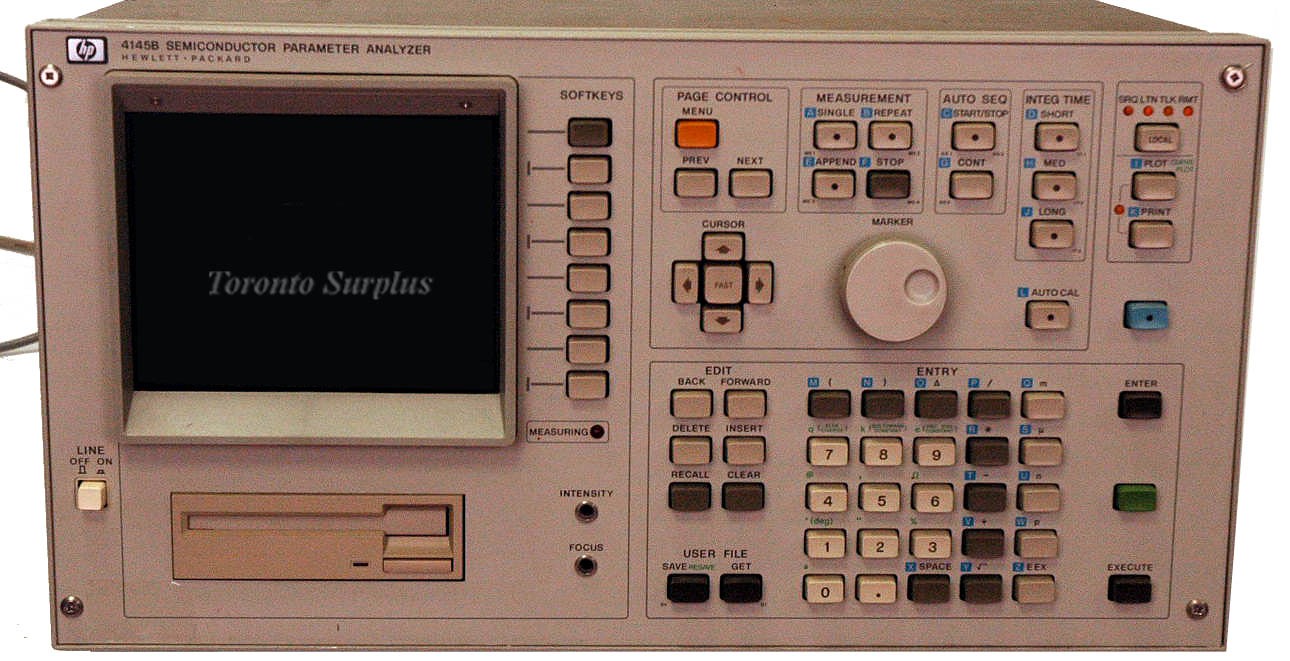

HP 4145B / Agilent 4145B Semiconductor Parameter Analyzer

The 4145B Semiconductor Parameter Analyzer is a stand-alone instrument capable of complete dc characterization of semiconductor devices and materials. It stimulates voltage and current sensitive devices, measures the resulting current and voltage response, and displays the results in a user-selectable format (graph, list, matrix or schmoo) on a built-in CRT display.

Features

    * Fully automatic, high-speed dc characterization of semiconductor devices
    * High resolution, wide range sourcing and measurement. I: 1pA - 100mA, V: 1mV - 100V
    * Maximum 1150 measurement and display points for precise measurement and analysis
    * Flexible graphic analysis functions for quick parameter extraction
    * Built-in micro flexible disc drive for storage of 240 user programs or 105 measurement results

Includes the following:

• 4145B Semiconducter Parameter Analyzer
• Boot Disk (a Must have, the analyzer does not work without it)
• HP 16058A / Agilent 16058A Test Fixture& Socket Board Set
  • 16058A Test Fixture for measurement of discrete components
  • 16058-60003 Personality Board
  • 16058-60005 Transistors Fixture
  • 16058-60007 Socket Board for 18 PIN DIP / Dual In-Line Package Fixture
  • 16058-60008 Diodes Fixture
  • 16058-60009 TO-Package (8pin) Fixture
  • 16058-60010 (TO-Package (10pin) Fixture
  • 16058-60011 (TO-Package (12pin) Fixture
  • 16147-60002 (Dual Line Package (28pin) Fixture
  • Blank PTFE Board for Measurement of High Resistance Devices
  • 16058-61600 14 x Connection Cable (large to small)
  • 16058-61602 5 x Miniature Clip Lead
  • 16058-61604 System Cable
  • 4 x Triaxial Cables
  • 4 x BNC Cables

Accessory Case
