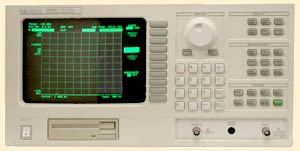

The Agilent 3588A spectrum analyzer provides comprehensive frequency-domain measurements and covers the baseband through IF frequency range of 10 Hz to 150 MHz. The Agilent 3588A offers high-performance spectrum measurements and simple scalar network measurements with its fully-synthesized tracking generator.

• Full baseband and IF frequency coverage from 10 Hz to 150 MHz
• Accurate measurement of noise S/N power and frequency
• Superb frequency resolution to separate signals in high-density channels
• Amplitude accuracy of ±0.25 dB (typical)
• Narrowband zoom is fast enough to show you spurious signals from hopping carriers
• HP Instrument BASIC provides automated signal monitoring and measurement
• Built-in frequency counter for quick signal identification
• Amplitude: Measurement Range - 1 Mohm input: -31 nVrms to +7.08 Vrms 50/75 ohm input: -137 dBm to +30 dBm
• Amplitude Dynamic Range: Spurious Responses - 50/75 ohm input: < -80 dB 1 Mohm input: < -80 dB

This unit offers: 80 dB dynamic range 3 Hz resolution bandwidth ±0.4 dB amplitude accuracy 1001 x 1024 Digital Storage Display.

OPT 001: High-Stability Frequency Reference
OPT 003: Add 2 MB Memory
Bright Crisp CRT Excellent Condition"
