Product Description

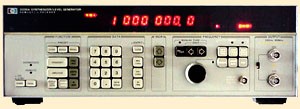

This unit combines the frequency, accuracy and stability of a synthesized generator with time-saving convenience of digital sweeper. It incorporates a state-of-the-art attenuator with accuracies of up to + .025 dB over the 81 MHz frequency range. Frequency stability up to + 1 x 10-8 / day is provided by an internal temperature-controlled oscillator.
SPECIFICATIONS
Resolution: .001, Harmonic Distortion: 200 Hz-10 MHz <-45 dBc; 10 MHz-80 MHz <-40 dBc, Amplitude Range -88.74 dBm to + 13.01 dBm depending on options and impedance, HP-IB.
