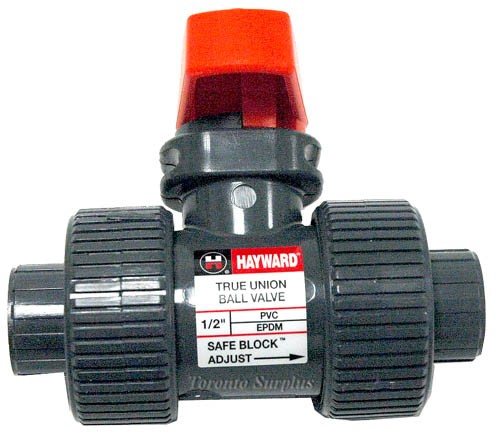

HAYWARD TB1050STE 1/2" Threaded/Socket PVC TB Series True Union Ball Valve with EPDM O-Ring BNIB / NOS

Rugged, Heavy Wall PlasticConstruction

Stands up to the most aggressive of applications.H ayward True Union Ball Valves can take the day to day abuse of industrial service and continue to function.

True Union Design
This makes these valves very easy to maintain by allowing for easy removal from a piping system without breaking down piping connections. Just unscrew the two assembly nuts and lift the valve body out of the line.

Advanced Design Features

Hayward True Union Ball Valves are superior performers. A fine-pitch seal retainer thread allows for accurate compensation for seat wear. Reversible seats make it easy to get a damaged valve back in service. Should the seats become damaged they only need to be removed, turned over, and reinstalled to put the valve back on line. These valves feature a double o-ring stem seal for twice the leakage protection of valves with only a single stem seal.

Never a Problem with Corrosion

This is because of the valves’ all-plastic Construction. They will never rust or corrode
– and they can survive corrosive environments without the need for painting or expensive epoxy coating.


-1/2'' PVC body rated to 225 psi
-Teflon seat
- EPDM seals

Features

    * NSF/ANSI 61 Listed
    * PVC and Corzan CPVC
    * Full Port Design
    * Reversible PTFE Seats
    * Double O-Ring Stem Seals
    * Easy to Service
    * Easily Automated


Applications

    * Water & Wastewater Treatment
    * Chemical Processing
    * Food & Beverage
    * Swimming Pools & Water Parks
    * Aquaculture
    * Aquarium & Zoo Service
    * Pharmaceutical
    * Pulp & Paper
    * Landfill Service
    * Marine & Corrosive Environments
    * Metal Finishing & Plating
