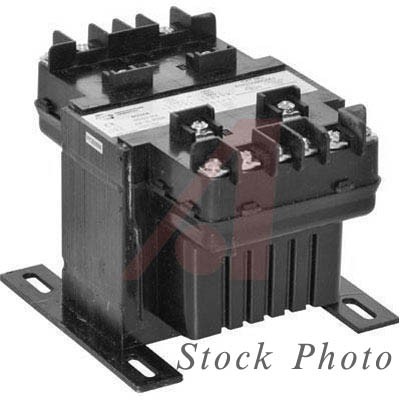

Hammond PT1000MEMX Transformer 1PH, 50/60Hz, 1kVA 600V pri 120/240 sec BNIB / NOS

Brand:                    Hammond Power Solutions
Mfg part number     PT1000MEMX

Specifications:

Electrical Specifications:

1PH, 50/60Hz, 1kVA, 1K Rating
Primary configuration:          600Volts
Secondary configuration:     Two Winding 120/240 Volts
Reverse connectable:          Yes
Winding material:                  Copper
Electrostatically shielded:     No
Connection type:                  Screw Terminals

Mechanical Specifications:
Temperature rise (deg C):     80
Insulation system (deg C):     130
Construction style:                Open - Cast or Encapsulated Core & Coil
Mounting type:                       Base/panel
Cooling:     Air/Dry

Other Information:
UL listed
Agency approvals     CE Marked, RoHS Compliant

Weight & Dimensions:
Weight     23.60 lbs. (10.70 kg)
LxWxH     6.81 x 5.25 x 4.94 in.
(17.30 x 13.34 x 12.55 cm)
