The 1422-CB is three-terminal capacitor with shielded coaxial terminals for use in three-terminal measurements. Connection is made via GR-874 connectors. The calibrated direct capacitance is independent of terminal capacitance to ground, and losses are very low.  The current IET catalog number is 1422-9916, but ours is the GenRad version. 1422-CB

SPECIFICATIONS:

• Capacitance Range (min/max): 50/1100 pF
• Scale, pF Division: 0.2
• Initial Accuracy pF: ±1.5
• Direct-Reading (Adjustment) Total Capacitance: ±1.5
• Residuals (typical values) Inductance, uH: 0.14
• Residuals (typical values) Resistance, ohms at 1 MHz: 0.1
• Terminal Capacitance, pF, typical, high terminal to case: 36/35
• Terminal Capacitance, pF, typical, low terminal to case: 58/53

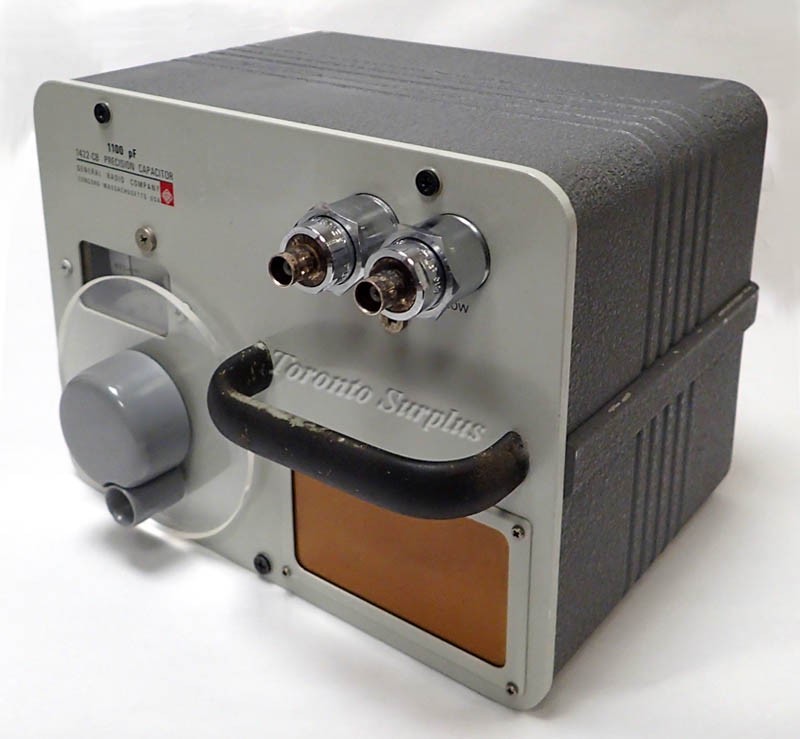

We are including the 2 x GR-874-BNC (f) adapters pictured.
