Product Description

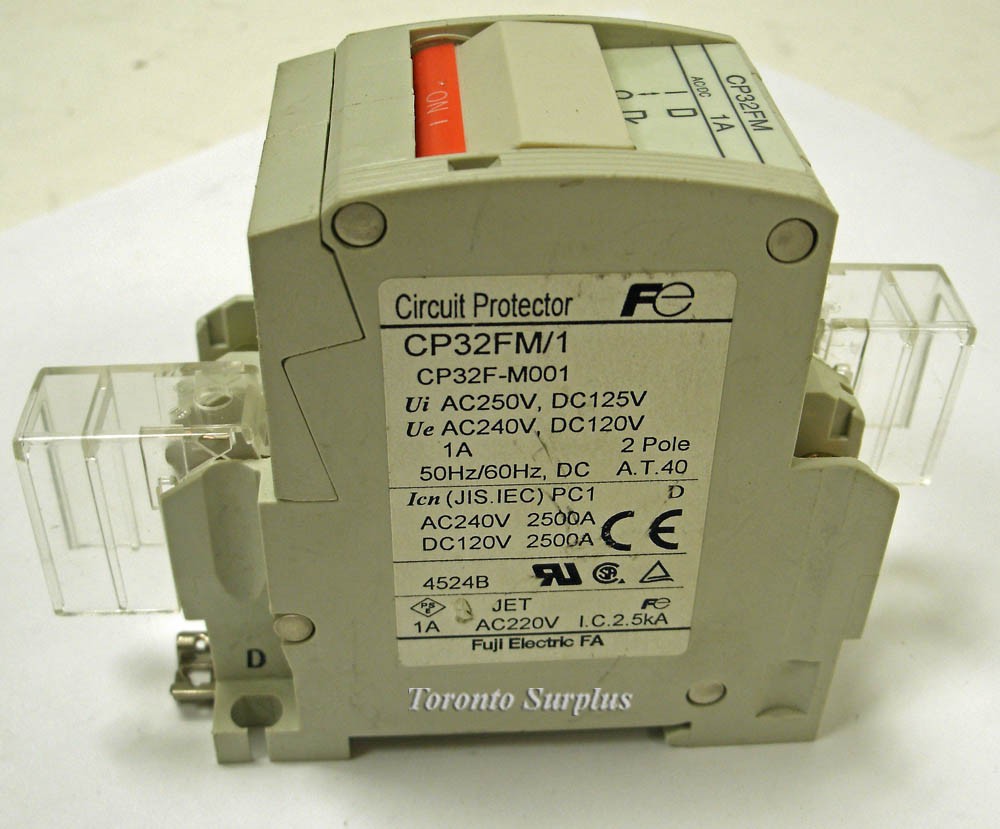

Circuit Protector CP325FM/1
Pole: 2 Pole
Rated Insulation Votage ( Ui ) : 250AC / 120DC
Rated Operational Voltage ( Ue): 240v AC 120v DC
Rated Current: 0.1, 0.3, 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30A
Rated Breaking Capacity: 2500A at 120V DC ( 2 pole )
Operating Characteristic: Long time delay ( AC circuit only Medium Time delay,
Instananeous tripping.
Tripping Mechanism: Hydraulic-magnetic
Ambient Temperature: -10 to +60°C
Dielectric Strength: 2000V AC 12 Min
Electrical Durability: 10000 Operations or more
Mass ( approx ) 160g
