This unit can test two multimode fibers simultaneously for loss at two wavelengths, calculate cable length and store data from the tests for readout on a PC.
The ACT2 can be used for premises cabling and includes a talkset for communication between test crews.
The database memory can hold test data on up to 250 cables and 500 fibers, and cable data can be loaded from a PC before testing. The fiber tester is menu-driven, with four front-panel buttons to allow scrolling.

SPECIFICATIONS:
Wavelengths: 850 and 1300 nm
Fiber: Multimode
FO Connectors: ST (see below)
Loss Measurement Range: 20 dB
Display Resolution: 0.1 opr 0.01 dB
Datalink: RS-232
Dimensions: Each Solo and ACT2 unit measures just 6 x 3.7" x 1.3"
Power: AC Adaptor or 9V Battery (Not included)

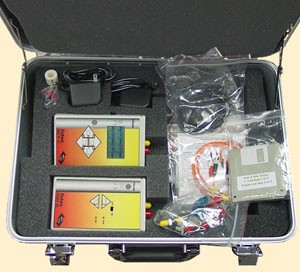

T-ACT2 KIT INCLUDES:
1 Fotec ACT2 Duplex Cable Tester
1 Fotec SOSO Unit
4 Hands Free Earphones for FOtalk
1 A101 Hard Shell Transport Case with Keys
2 Packages of Alco Pads for Cleaning Connectors
2 A108 Battery Charger / Eliminator
1 RS-232 Cable
2 ST/ST ATC-DCT-62.5 Duplex Multimode Cable Test Kits
1 SC/ST 62.5 Duplex Multimode Cable Test Kit
12 Assorted Fiber Optic Adapters
1 Fotec FOtracer for Tracing Fibers
1 AFT-ST/SC Fiber Optic Testing Guide
1 Quickstart Guide
1 Operating Instructions Manual
1 Software Package V 1.04 (3 disks)"
