Product Description
Features/Benefits:
•Adder Poles
All series have optional adder poles which snap onto the 1, 2 or 3- pole
blocks and lock together to form as many poles as required. Adder poles
with a variety of terminations can be combined to match special wire size
combinations.
•Wire Connectors
Standard aluminum box connectors accommodate aluminum or copper
wire, 1 conductor per opening. Standard copper box connections are for
copper wire only, 1 conductor per opening. Connectors are all 1 piece and
tin plated.
•Insulators
Insulators are virtually unbreakable, glass-filled polycarbonate
on all series. “See-through” safety covers are available, which give greater
safety and provide service entrance ratings for large and intermediate

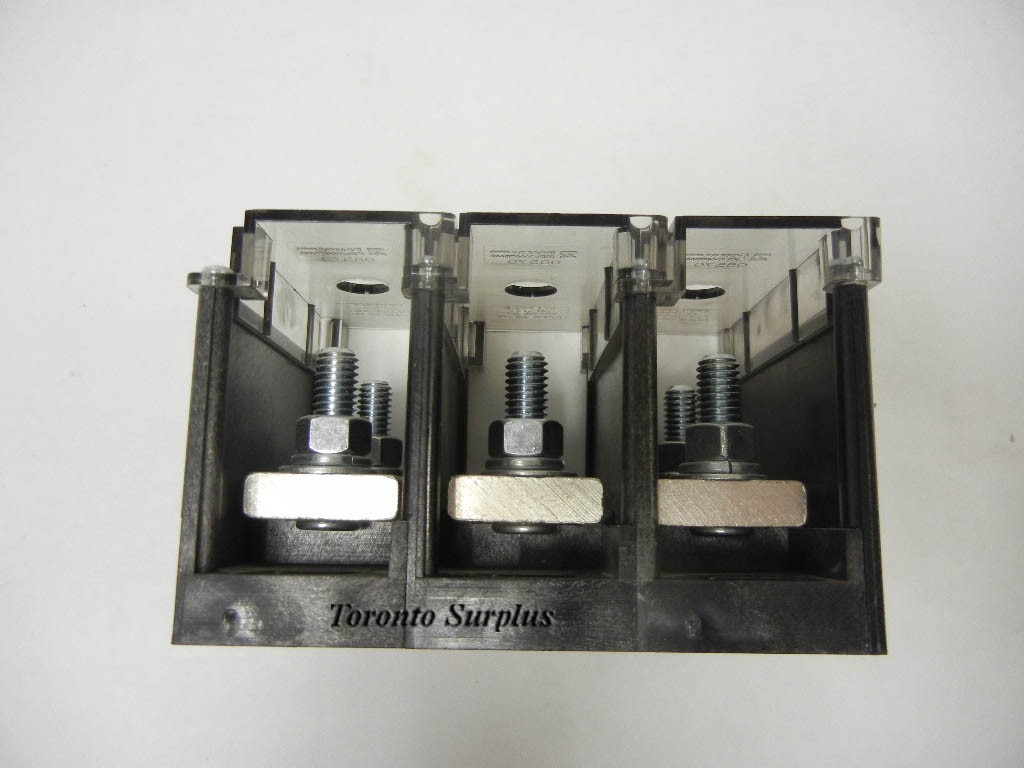

Distribution Blocks: Block Type - Power Distribution, Poles Per Block - 3, Openings Per Pole, Primary - 1 Stud, Conductor Size - Primary - 3/8"-16 x 1-1/8", Openings Per Pole, Secondary - 1 Stud, Conductor Size - Secondary - 3/8"-16 x 1-1/8", Conductor Material - None, Material - Housing - Polycarbonate, Material - Connector - Aluminum, Rating - Voltage - 600V, Rating - Amps - 400,
