Product Description

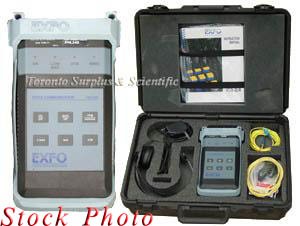

This Model VCS-20A-03BL-70 includes the following:
- VCS-20A-03BL-70 Multi-Party Talk Set 1550nm
- Case
- Charger
- Headset
- FC/PC to FC/PC
- Cable
FEATURES:
- Full-duplex talk set over one fiber
- Stable light source for attenuation testing
- 2 kHz active fiber generator / optical tone generator
- Full digital voice communication
SPECIFICATIONS:
- Wavelength: 1550 nm ±15
- Spectral width: 5 nm
- Emitter type: laser
- Optimum fiber type: 9/125 µm
- Distance range (approx.): 120 km
- Dynamic range (typical): 9/125 µm: 38 dB 50/125 µm: 23 dB 62/125 µm: 21 dB
- Power output (typical): -5 dB
- Stability (typical): 1 hour: ±0.05 dB 24 hours: ±0.15 dB
- Operating temperature +15°F to +104°F
- Humidity 0-95% non-condensing
- With built-in Ni-Cads: 10 hours typical from full charge
- With 9 VDC alkalines: 8 hours of operation automatic transfer to alkalines when Ni-Cads are running low
- With 12 VDC charger: continuous operation
