Exfo FOT-910 Fiber Optic Test System, Model FOT-912X-23BL-70

XFO's FOT-910 automated attenuation/ORL test set is an advanced-technology testing device, designed to save time and money by increasing the efficiency of fiber-testing crews. The FOT-910 measures relative loss (dB), absolute power (dBm), back-reflection (dB), and transmission equipment source stability.

The FOT-910 was the fastest attenuation meter in the industry. It tests bi-directional loss on a single fiber in 33 seconds. Single- or dual-wavelength (850/1300 nm or 1310/1550 nm) loss tests can be performed at the touch of a FasTesT button. On-site reference capability eliminates side-by-side source and meter referencing. Test results can be automatically stored in the non-volatile 680 register memory and printed out in report form.

Stringent transmission requirements for high-bandwidth applications demand precise network component and connector back-reflection measurements. The FOT-910 measures back-reflection from 0 dB to -55 dB easily and stores the readings for fast reference.

Test results can be downloaded to a personal computer via RS-232 interface for intuitive viewing, storage, and printing.

The FOT-910 is ideal for high fiber-count conditions common to BOCs, Telcos, CATV, long-haul carriers, railways, hydro companies, and LAN installations.

• Comes with adapters: FOA-22(FC) qty:3 FOA-54(SC)

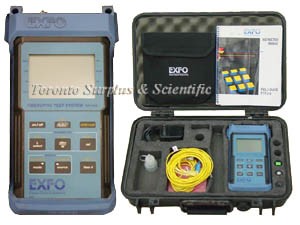

• Includes: Case, Charger, SC to SC cable, FC/PC to FC/PC cable, FC/PC to SC cable and Field Guide.
