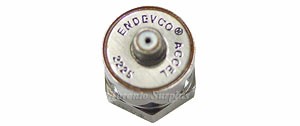

    Endevco 2224C Piezoelectric Accelerometer

    Double click on above image to view full picture

    More Views

    • Endevco 2224C Piezoelectric Accelerometer

    Endevco 2225 Piezoelectric Accelerometer in Box


    Part Number: sku3048
    US$225.00
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Category: SPECIALIZED FUNCTION

    Product Description

    The 2225 is a light weight piezoelectric accelerometer designed specifically for measuring high-g shock on structures and test articles. The Model 2225 features a 10-32 threaded hole for additional mounting integrity needed during high-g shock. It also has Endevco's Piezite® Type P-8 crystal element, operating in annular shear mode. These specially designed crystals exhibit low base strain sensitivity, high resonance frequency and excellent output stability over time.The accelerometer is a self-generating device that requires no external power source for operation.

      FEATURES:
    • Requires no external power
    • Annular shear
    • High-g shock
    • Rugged
    • Industry standard

      SPECIFICATIONS:
    • Charge Sensitivity: Typical 0.75, Minimum 0.60 pC/g
    • Capacitance approx: 800 pF
    • Resonance Frequency: 100 kHz (minor resonance 30 -80 kHz)
    • Amplitude Response: 4 to 10000 Hz ±5% / 1 to 12000 Hz ±1dB

    INCLUDES: Case, not shown.

    Specifications available upon request.
