Electro Scientific 296 LCR Bridge with ESI 2005 Probe

Features:

    Autoranging
    Dual Frequency (1kHz & 120Hz)
    Dual test voltage/current levels
    Guarded four-terminal connection
    front and rear panels
    0.1% basic accuracy
    Up to 28 measurements per second
    0.1% Basic accuracy
    Input Protection

Simplicity at its finest…the 296 Digital Impedance Bridge is a microprocessor-controlled bridge! Making high speed measurements of L, R, C, G and calculating D and Q has never been easier. Ranges: 19.999 mH to 199.99 H; 100 mohms to 1 Mohm; 199.99 pF to 19.999 mF at 1kHz. The 296 operates equally well as a stand alone bench top instrument, or in a complex automatic testing system.

Manual programming is done with a 24-button front-panel keyboard. The operator just "tells" the meter what to measure, the two 4 1/2-digit LED displays simultaneously read out the reactive and loss components of the unknown. Programmable limits feature provides 10 user-selected comparison values for multi-band sorting. Along with the programmable limits, the 296 also features deviation measurement as standard.

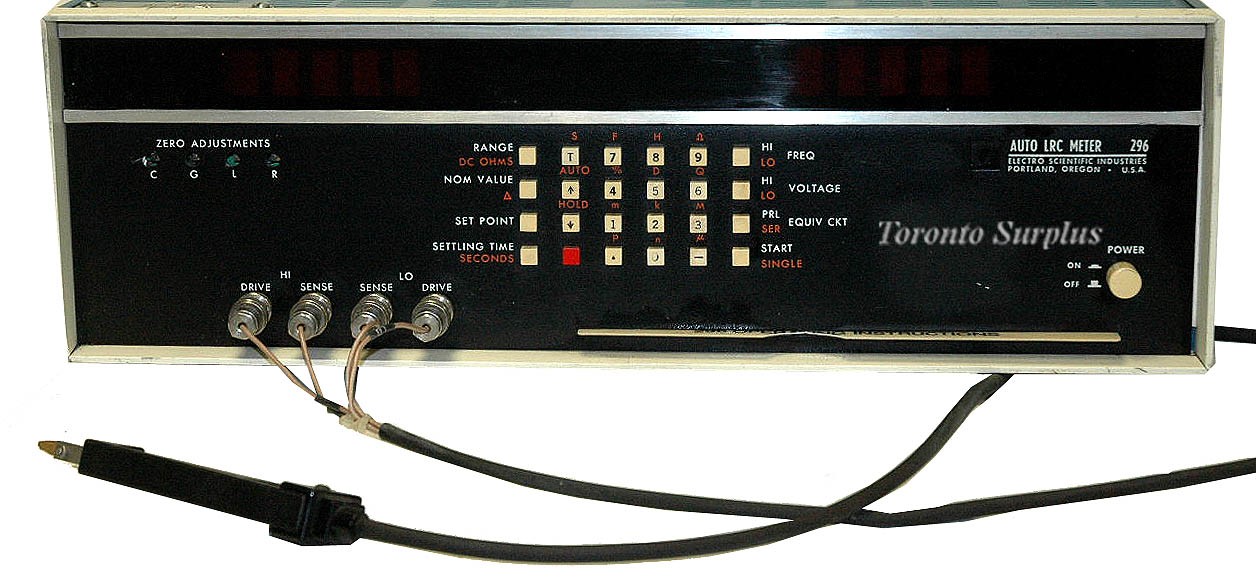

*unit comes with ESI 2005 Probe as displayed in picture
