Product Description

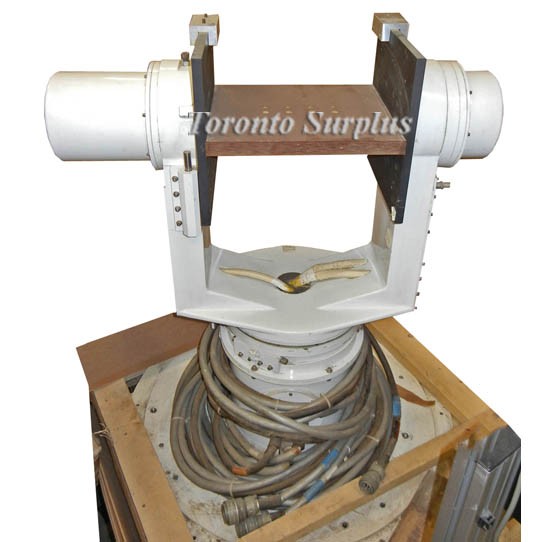

XY Antenna Positioner Mount for Heavy Payload, Similar to Scientific Atlanta
This XY Antenna Positioner Mount is similar to one manufactured by Scientific Atlanta. It is in good condition an comes with cables (as pictured).
Consists of the following:
- Positioning DC Torquer Motors
- 2 Axis Positioner (Base & Table) with 2 BNC Coax Connectors from Base to Platform
- Measurement Systems Absolute Encoder Item# RA17/35C Digisec (P/N 2952-13X)
Weights & Dimensions:
- Weight approx. 300 lbs
- Mounting Plate approx: 12 x 13 1/4"
- Height approx 38"
- Base Diameter approx 33"
This positioner would work with a customer supplied DC servo amplifier (not included).
The purchaser will be required to furnish control system.
Sold as-is, as pictured, final sale.
We can send additional photo, upon request. One of the photos also shows dimensions, however we have no further details on the mount.
