Product Description

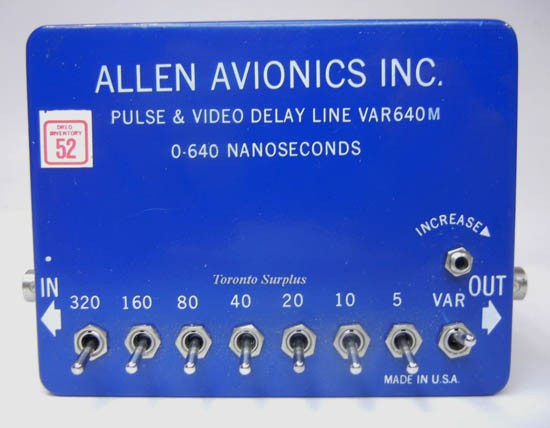

Allen Avionics Pulse & Video Delay Line VAR640M
- 0-640 Nanoseconds Delay Range
- Toggle Switch and Trimmer
- Trimmer Variation: Continuously Variable to 5 Nanoseconds
- Switch Variation: Toggle 5 to 635 in 5 Ns Steps
- Maximum Insertion Loss @ 100KHz (dB): 0.8
- Flatness at any delay Setting 100KHz to 5.5 MHz (db): 0.5
- Impedance :75 Ohms
- Pulse distortion: less than 3% with an input pulse rise time of 20 nanoseconds
- Working Voltage: 100 volts maximum
- Return Loss: 20dB or greater whichever is greater.
