VHLP1-13-2WH

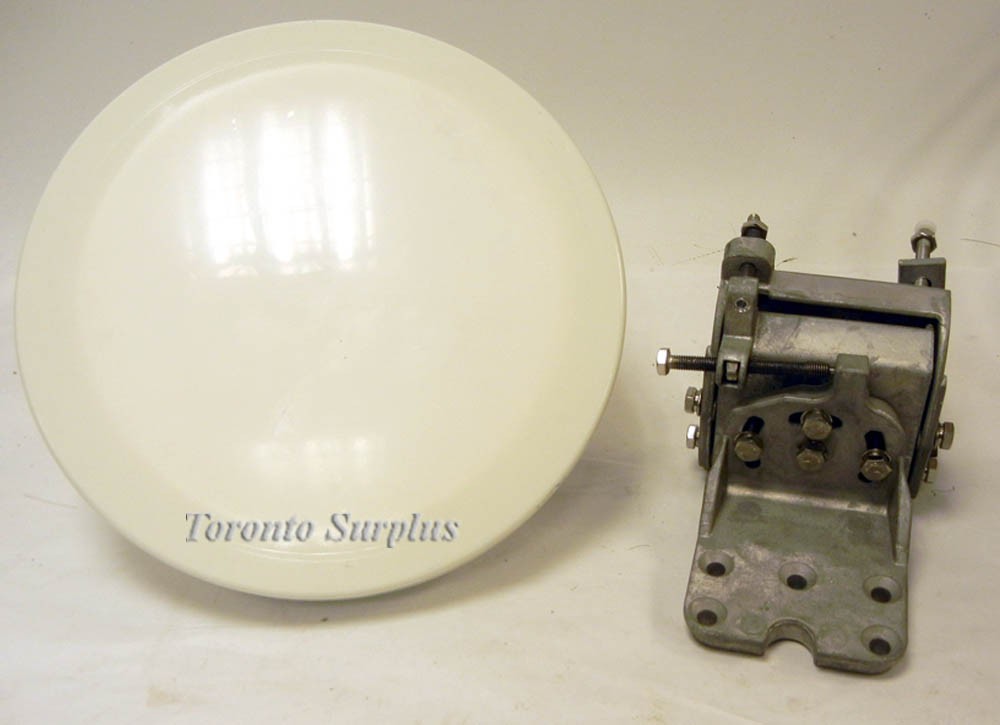

0.3 m | 1 ft ValuLine® High Performance Low Profile Antenna, single-polarized, 12.700–13.250 GHz, PBR120, white antenna, polymer white radome without flash, standard pack—one-piece reflector

Electrical Specifications
Operating Frequency Band: 12.700 – 13.250 GHz
Beamwidth, Horizontal: 4.7 °
Beamwidth, Vertical: 4.7 °
Cross Polarization Discrimination (XPD): 30 dB
Electrical Compliance: Brazil Anatel Class 2 / Canada SRSP 312.7 Part B / ETSI 302 217 Class 3
Front-to-Back Ratio: 56 dB
Gain, Low Band: 30.8 dBi
Gain, Mid Band: 30.9 dBi
Gain, Top Band: 31.0 dBi
Operating Frequency Band: 12.700 – 13.250 GHz
Radiation Pattern Envelope Reference (RPE): 7002A
Return Loss: 17.7 dB
VSWR: 1.30

Mechanical Specifications
Fine Azimuth Adjustment: ±15°
Fine Elevation Adjustment: ±15°
Mounting Pipe Diameter: 50 mm–115 mm | 2.0 in–4.5 in
Net Weight: 7 kg / 14 lb
Wind Velocity Operational: 200 km/h / 124 mph
Wind Velocity Survival Rating: 250 km/h / 155 mph
