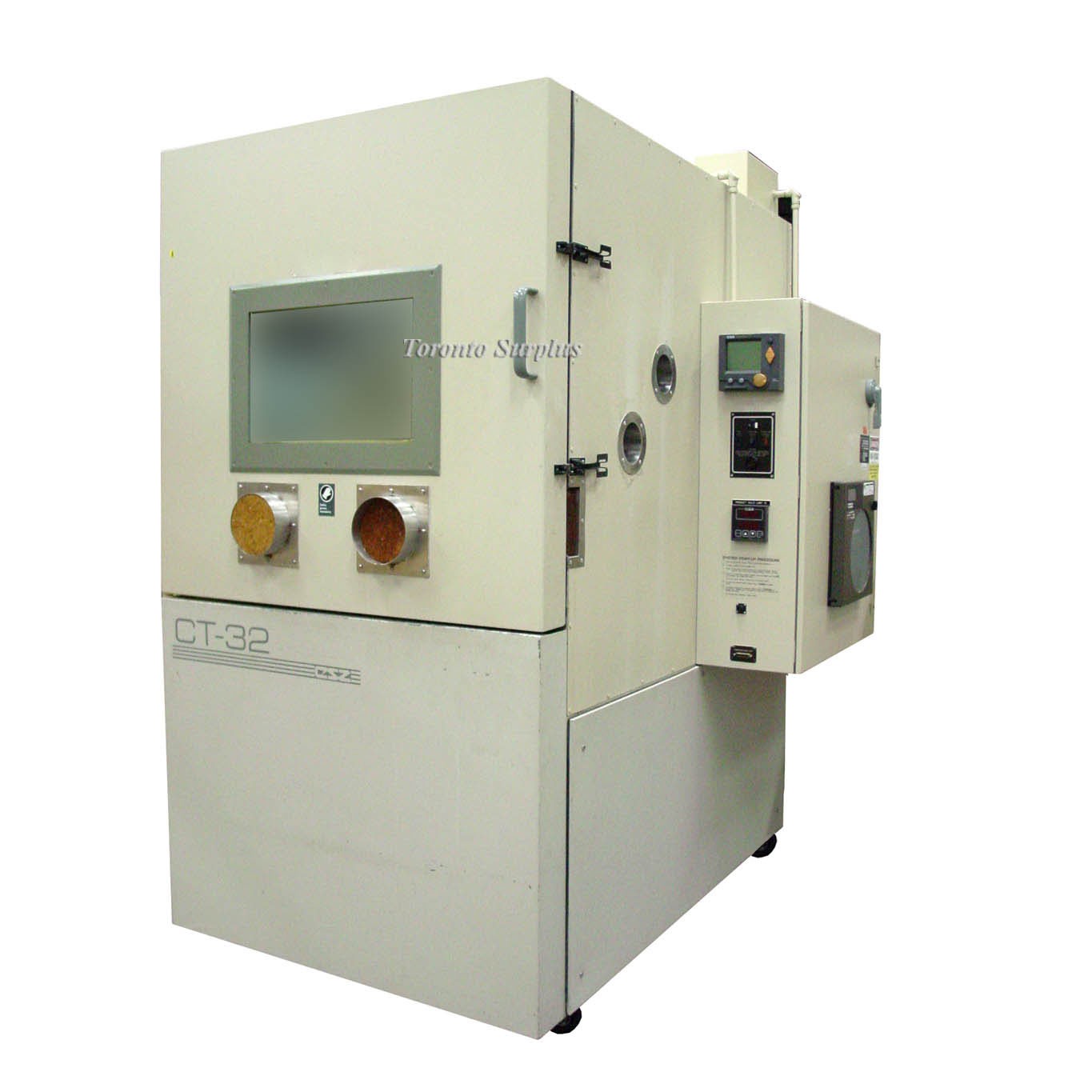

CT-Series Commercial Temperature chambers are high performance test chambers with fast change rates up to 25°C (Based upon a 32 cu. ft. chamber with no load, two 15 HP compressors and a temperature range of 85° C to -40º C.) for accelerated stress testing. These chambers are an extension of our Z-Series line offering heavy-duty construction and even more performance options while maintaining precise temperature and humidity control.

FEATURES:
Programmable Controller
RS-232/485 Computer Interface
Redundant Temp Limit & Alarm
3" Access Port
Stainless Steel Interior
Viewing Window & Light
Electronic Humidity Sensor
Honeywell DR4200 Chart Recorder
Dimension II Process Controller

Internal: 38 x 38 x 38" / 31.75 Cubic Feet
External: 49 x 66 x 78"
Cascade: -73° C to 190° C
Humidity Range: 10% to 98% RH
Humidity Water Demineralizer
Electronic Humidity Sensor
Power: 460 VAC, 60 Hz, 3 phase, 55 FL Amps
Cascaded System,

Water Cooled system


Additional photos available upon request
