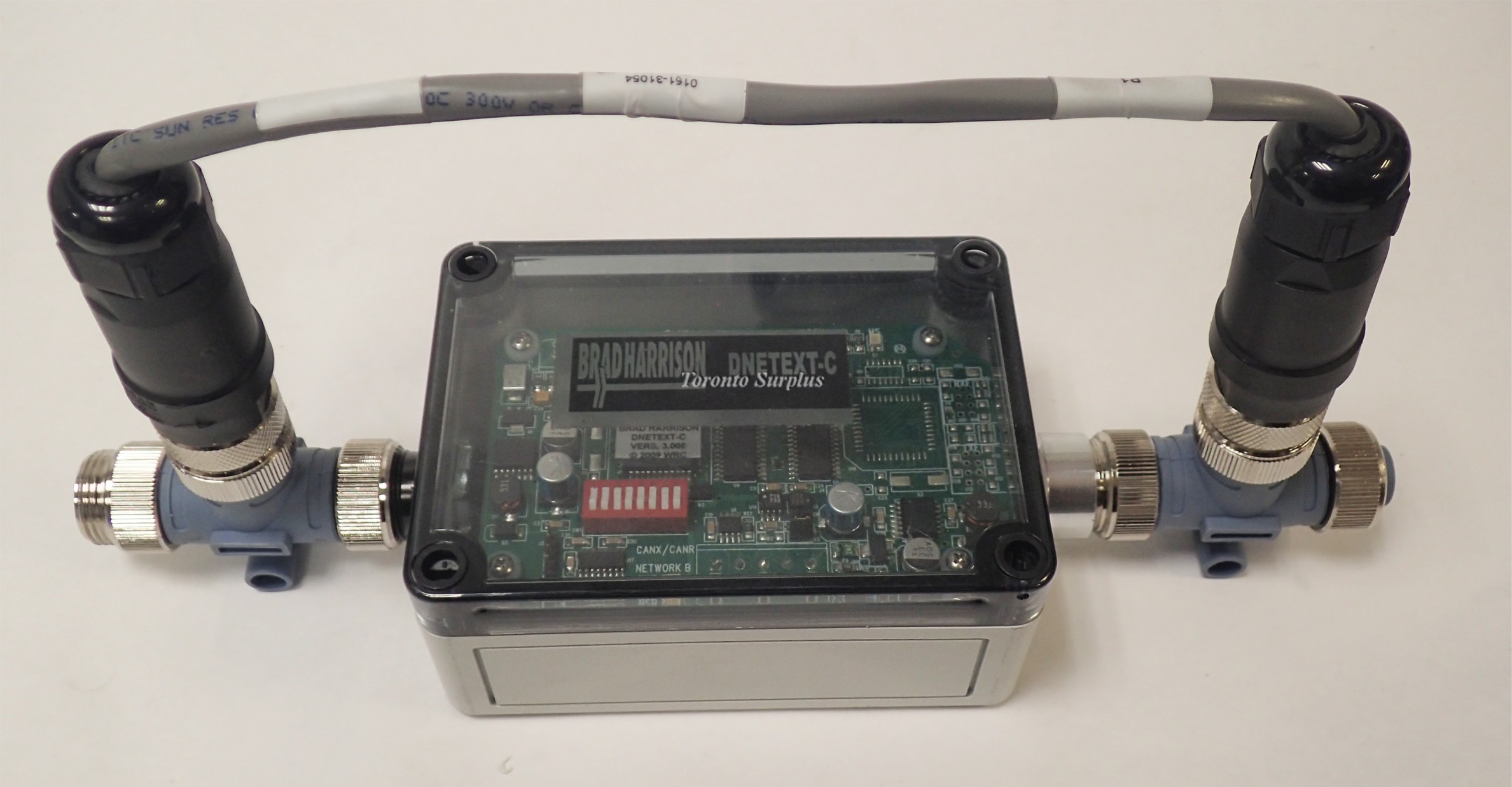

Product Description
Electrical extender to extend the permitted cable distances defined for CANbased
network products
Device Type: Communications Extender
Product Revision: 3
DeviceNet Conformance: Designed to conform to the ODVA DeviceNet Specification Version 2.0.
Baud rate: 125K, 250K, 500K, 1M - automatic selection
Bus Connection: Extender: Brad Harrison DN10A-MXX, female sockets, female threads
Brad Harrison DN01A-MXXX, male contacts, male threads
Status Indicators: Module Status: green/red bi-color LED
Network A Status: green/red bi-color LED
Network B Status: green/red bi-color LED
Diagnostic Data: green/red bi-color LED
Voltage Isolation: 2500 V
Maximum power: Voltage: 11 - 25 Vdc
Current: Network A: 140 mA @ 11 Vdc - 60 mA @ 25 Vdc
Network B: 20 mA @ 11 Vdc - 10 mA @ 25 Vdc
Power: 1.8 W
Mounting: DeviceNet Extender: Panel-mount, 4 screws
